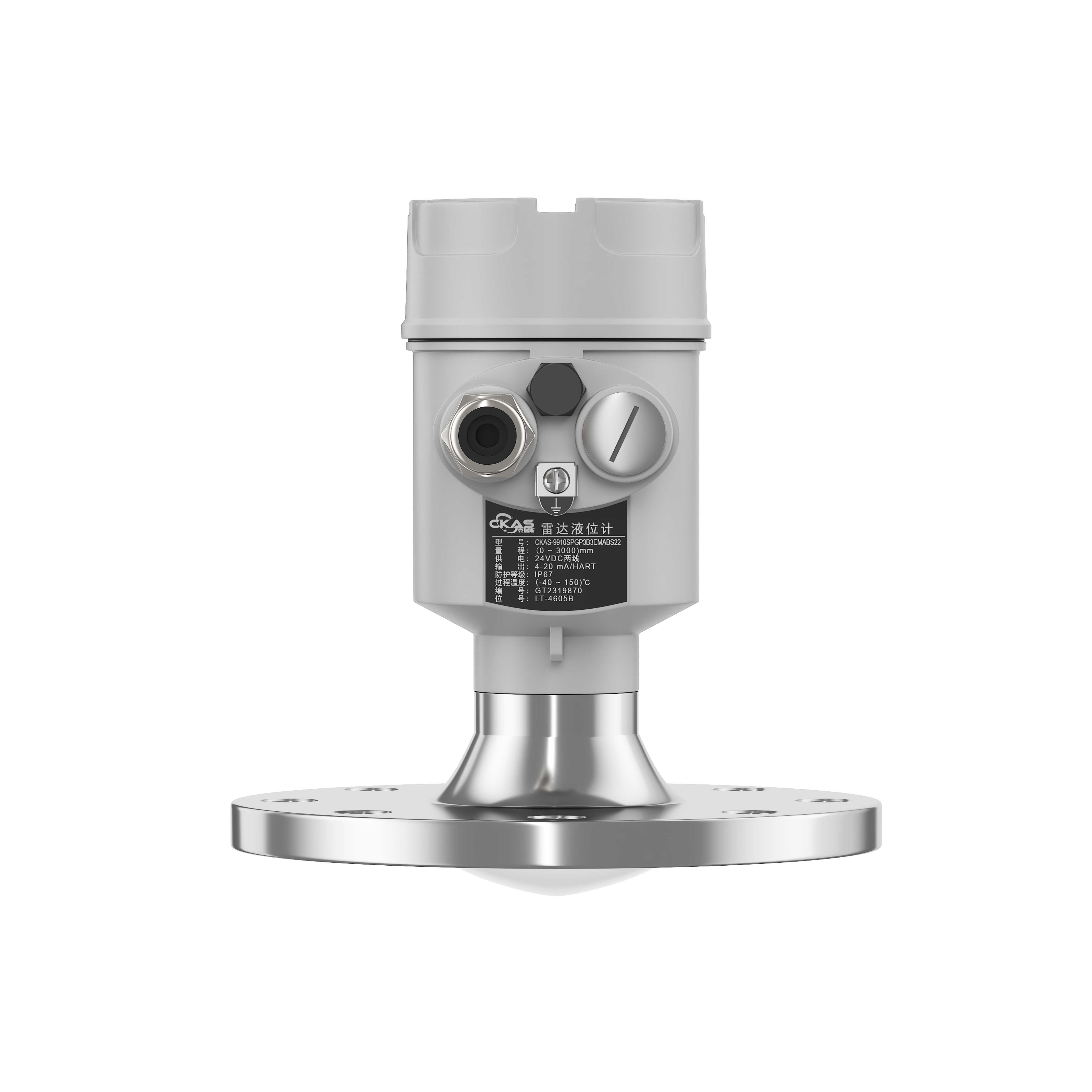

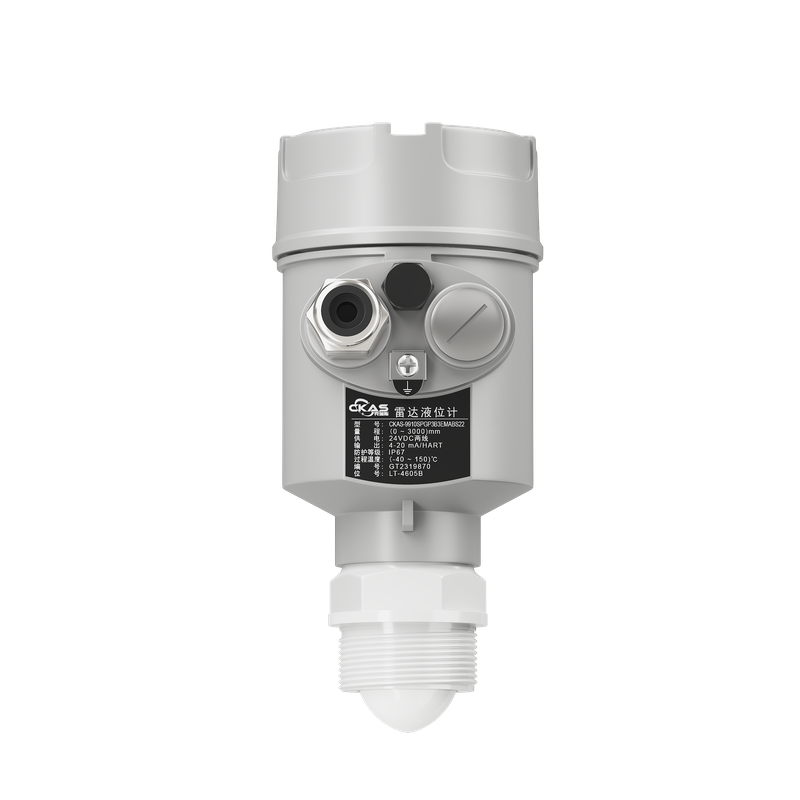

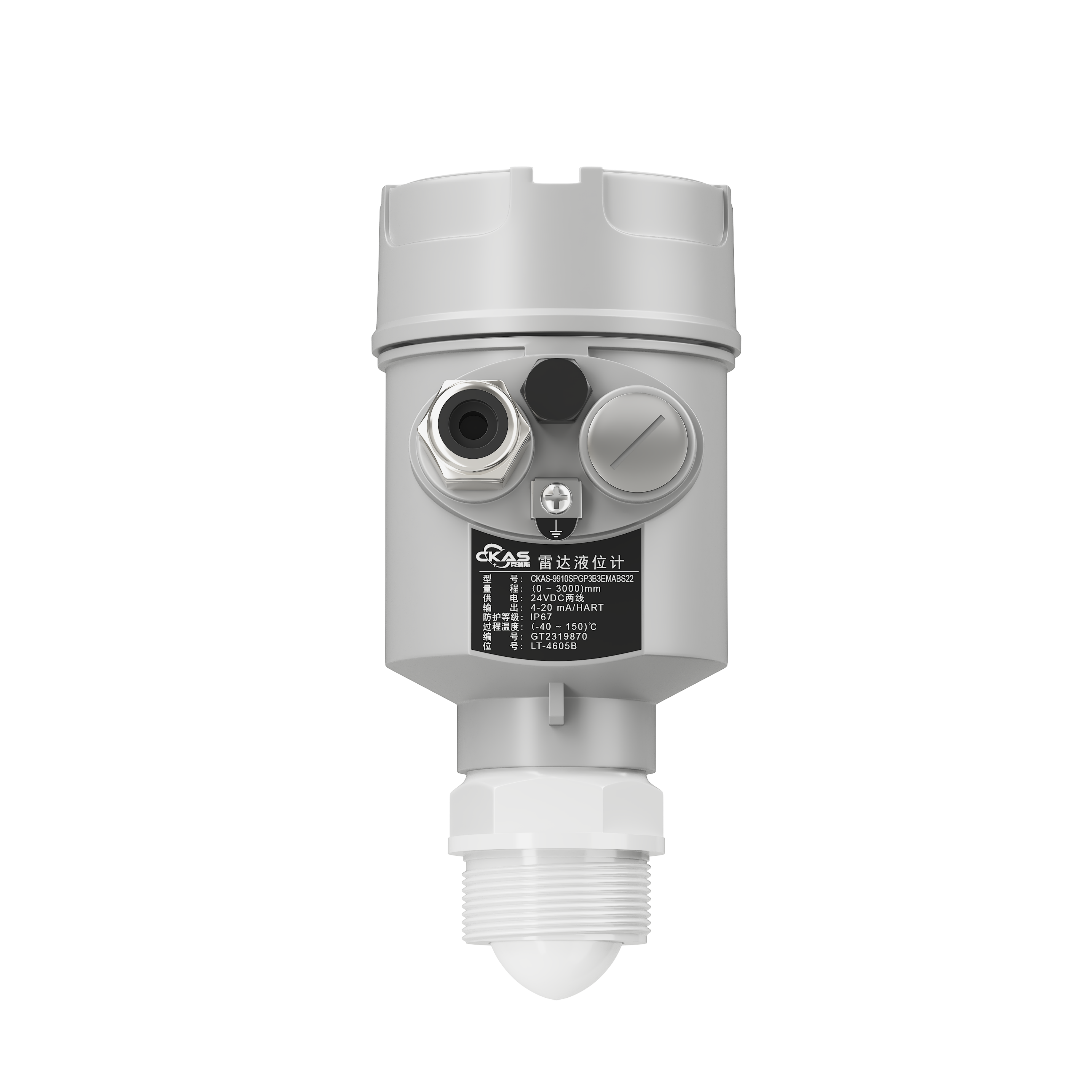

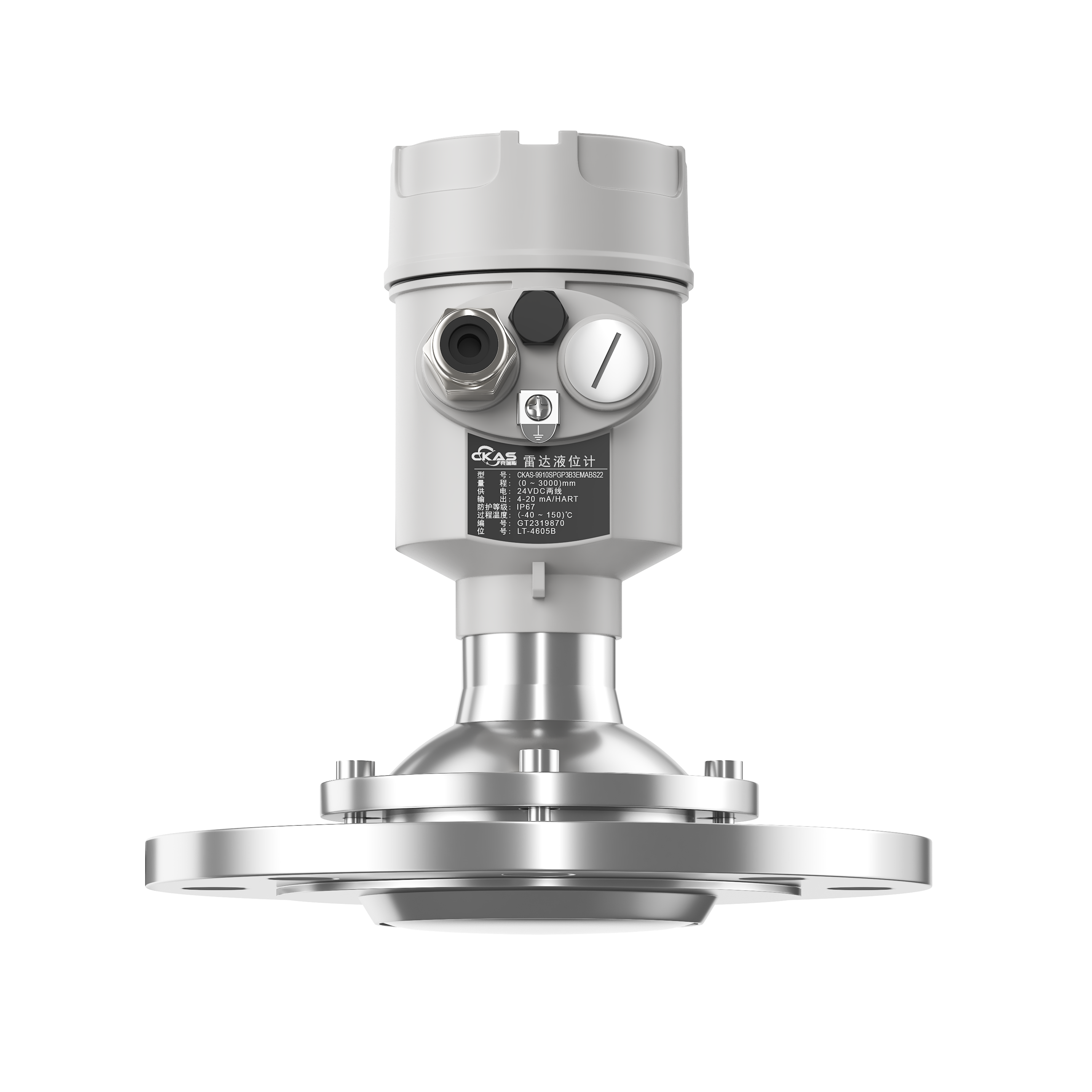

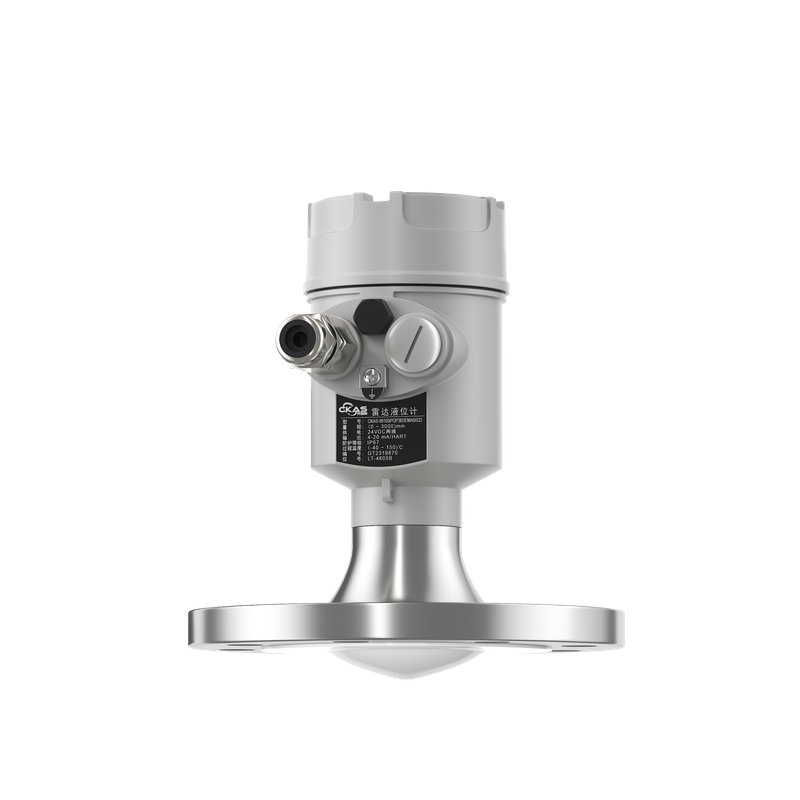

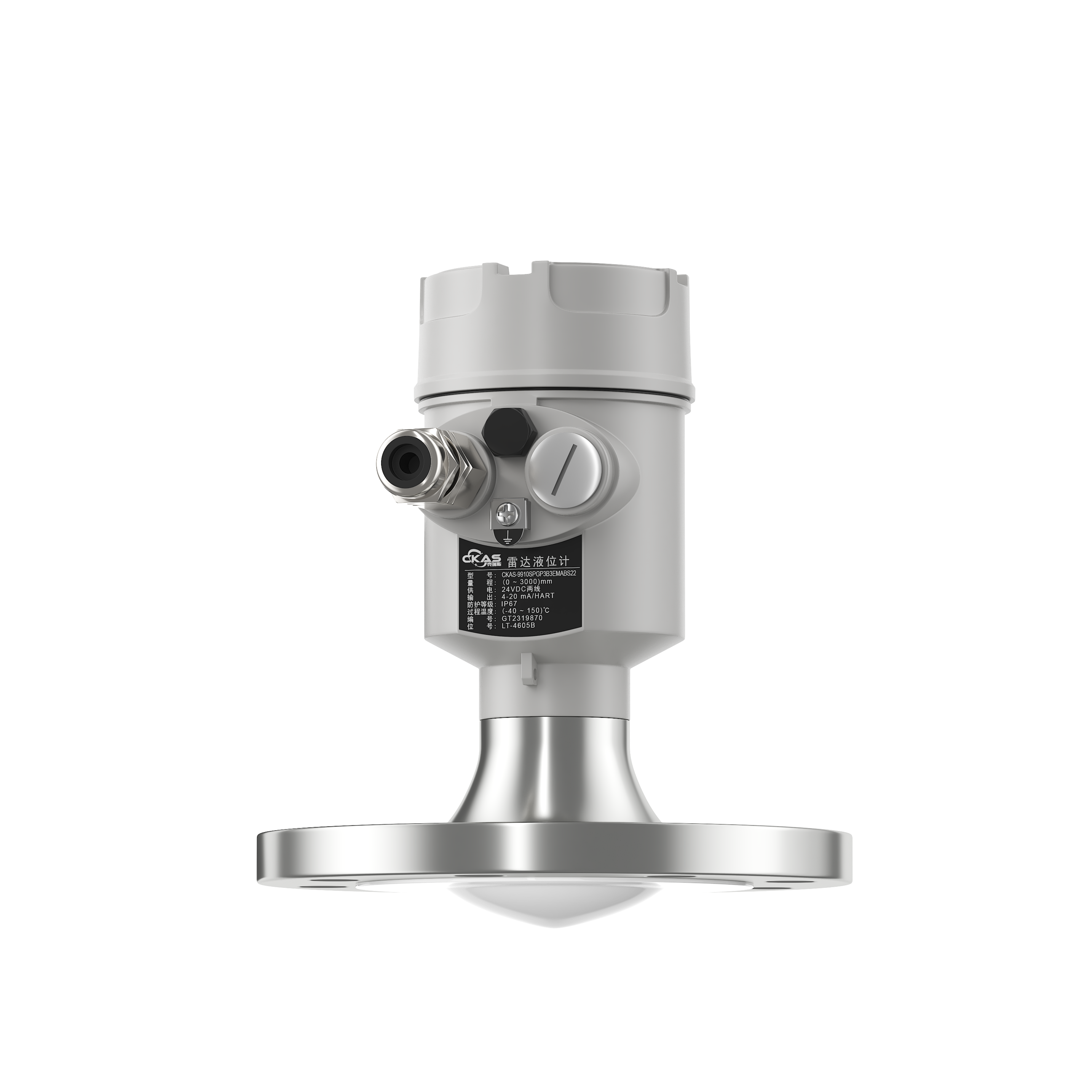

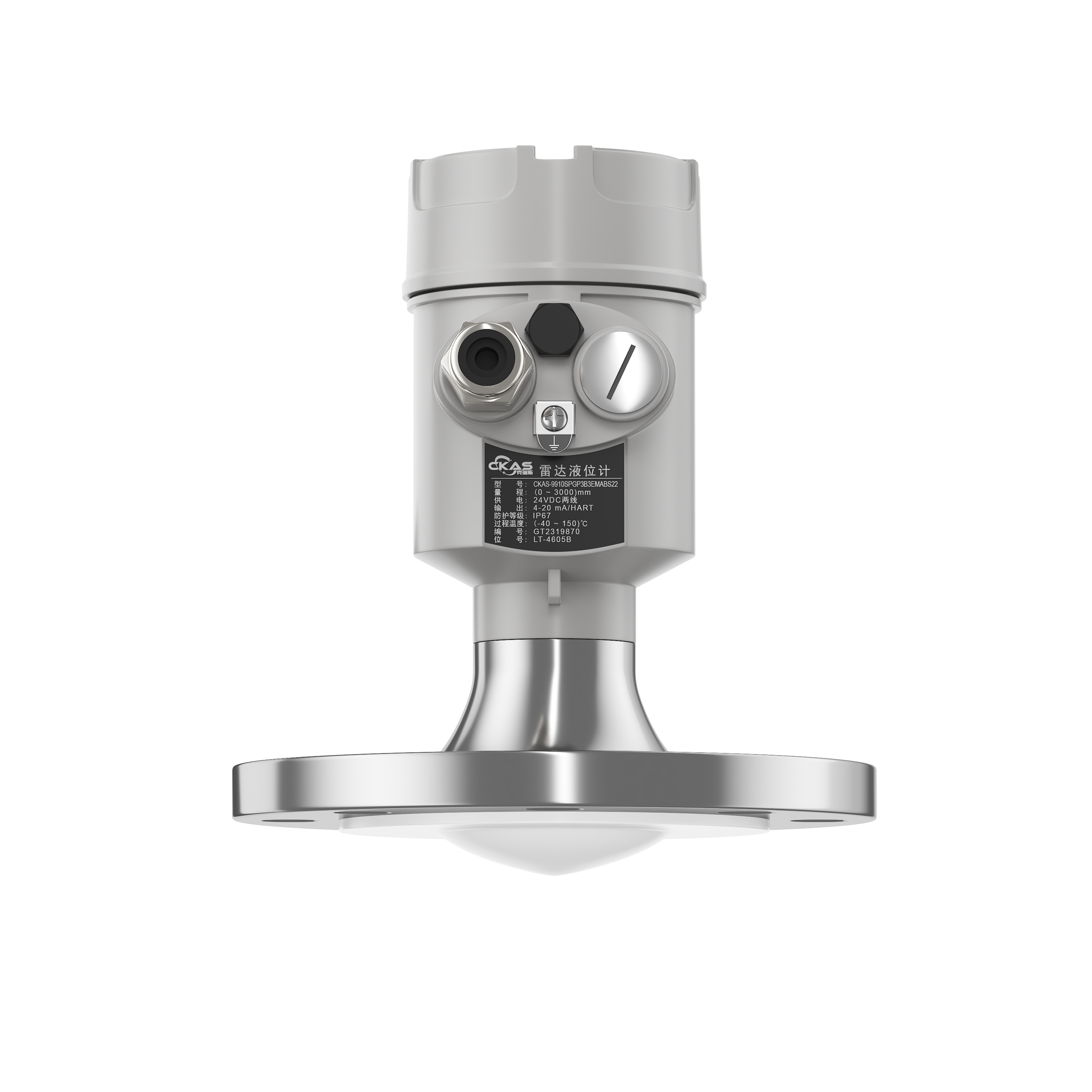

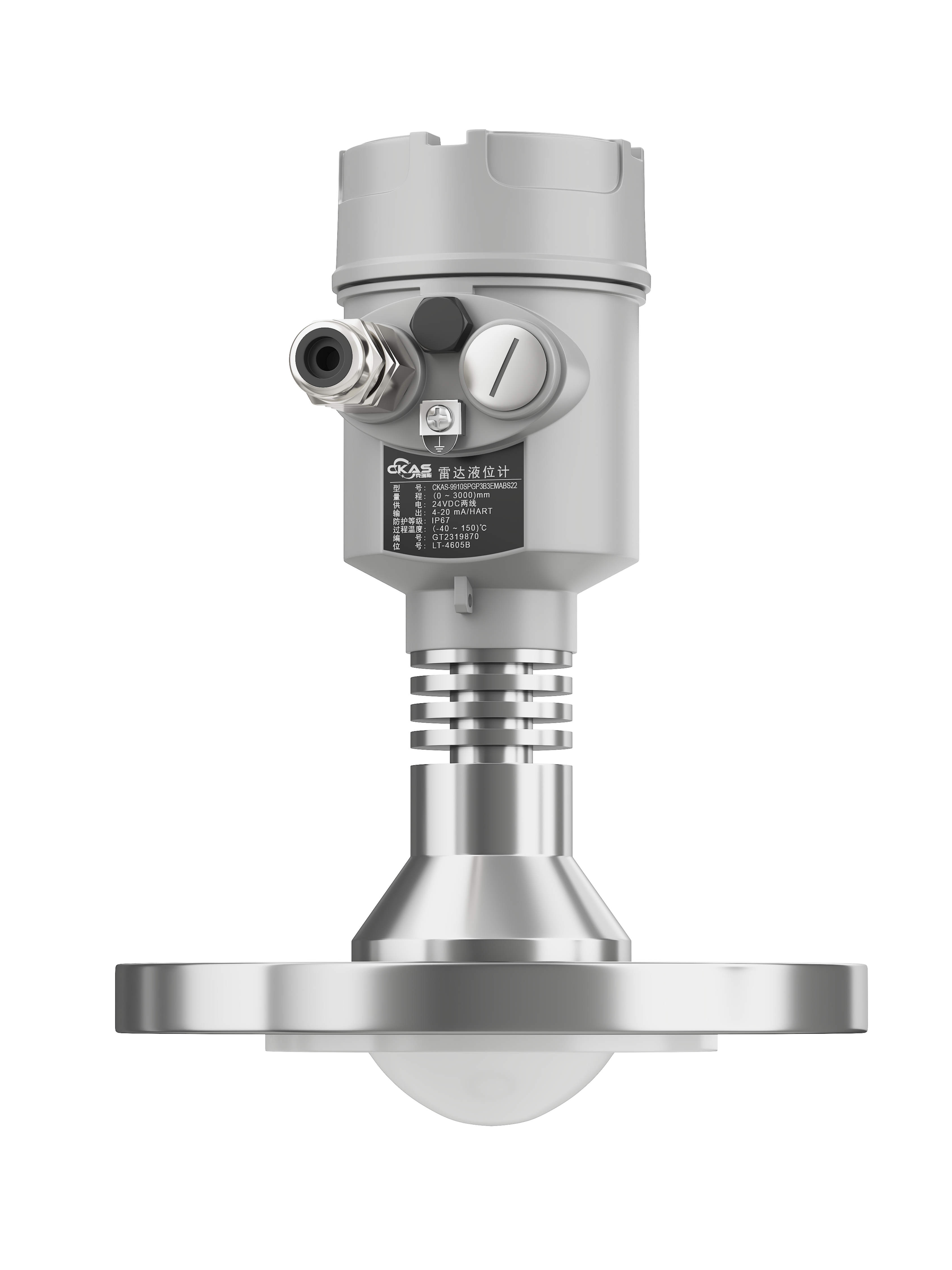

80G调频雷达液位计（80G FM radar level gauge）

概述

Overview

调频连续波雷达物位计的通用原理为雷达在罐顶发射电磁波，电磁波碰到介质反射后被雷达接收，接收信号与发射信号之间的频率差6f与介质表面的距离R成一定比例关系:R=C(速度)*6f(频率差) /2/K (调频斜率)。因为光速C和调频斜率K已知，因此估算出频率差6f，便可得到雷达安装位置料面的距离R，再通过已知的罐体总高，减去雷达到料面的空间距离(简称空高)，得出料位的高度。

The general principle of the FM CW radar level gauge is that the radar emits electromagnetic waves on the top of the tank, which are reflected by the medium and then received by the radar, the frequency difference between the received signal and the transmitted signal is proportional to the distance from the surface of the medium: R = c (velocity) * 6f (frequency difference)/2/K (frequency modulation slope) . Since the speed of light c and the slope K of the FM are known, an estimate of the frequency difference of 6F gives the distance r of the material surface to the radar installation position, and then through the known total height of the tank, the height of the material level is obtained by subtracting the space distance from the radar to the material level (short for air height) .

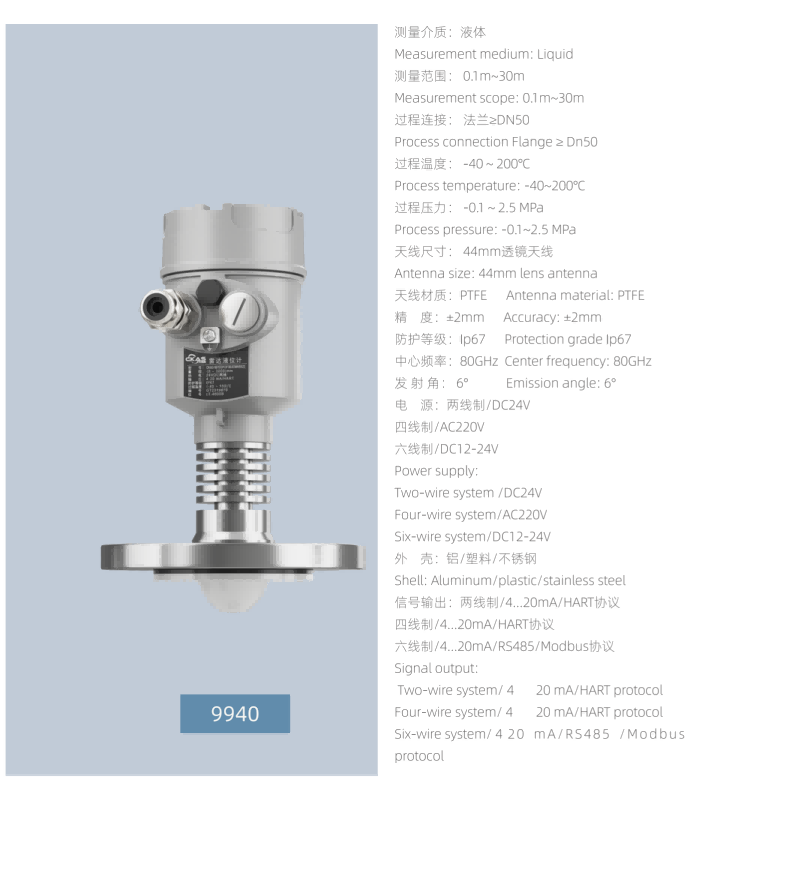

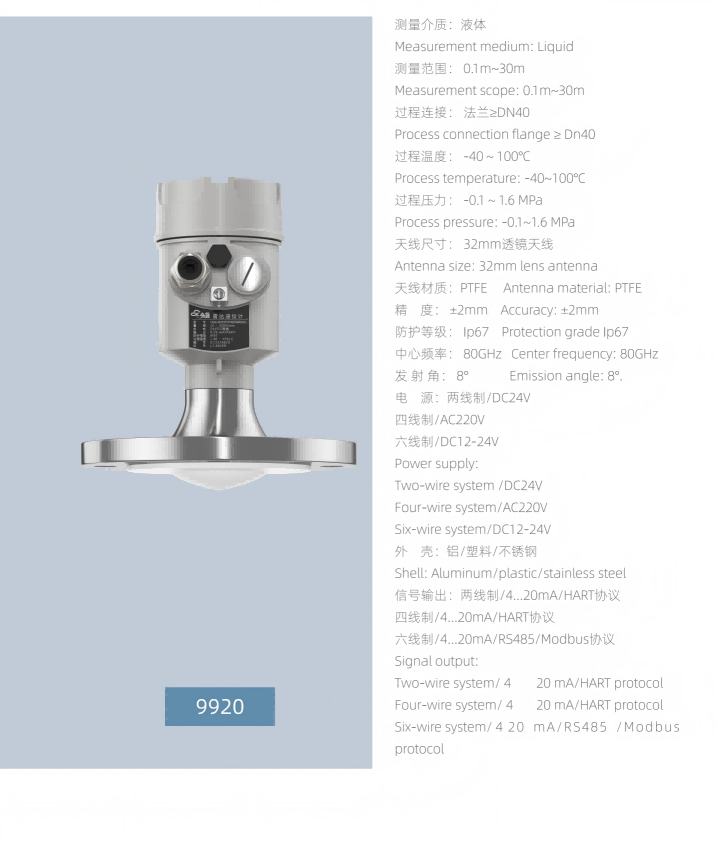

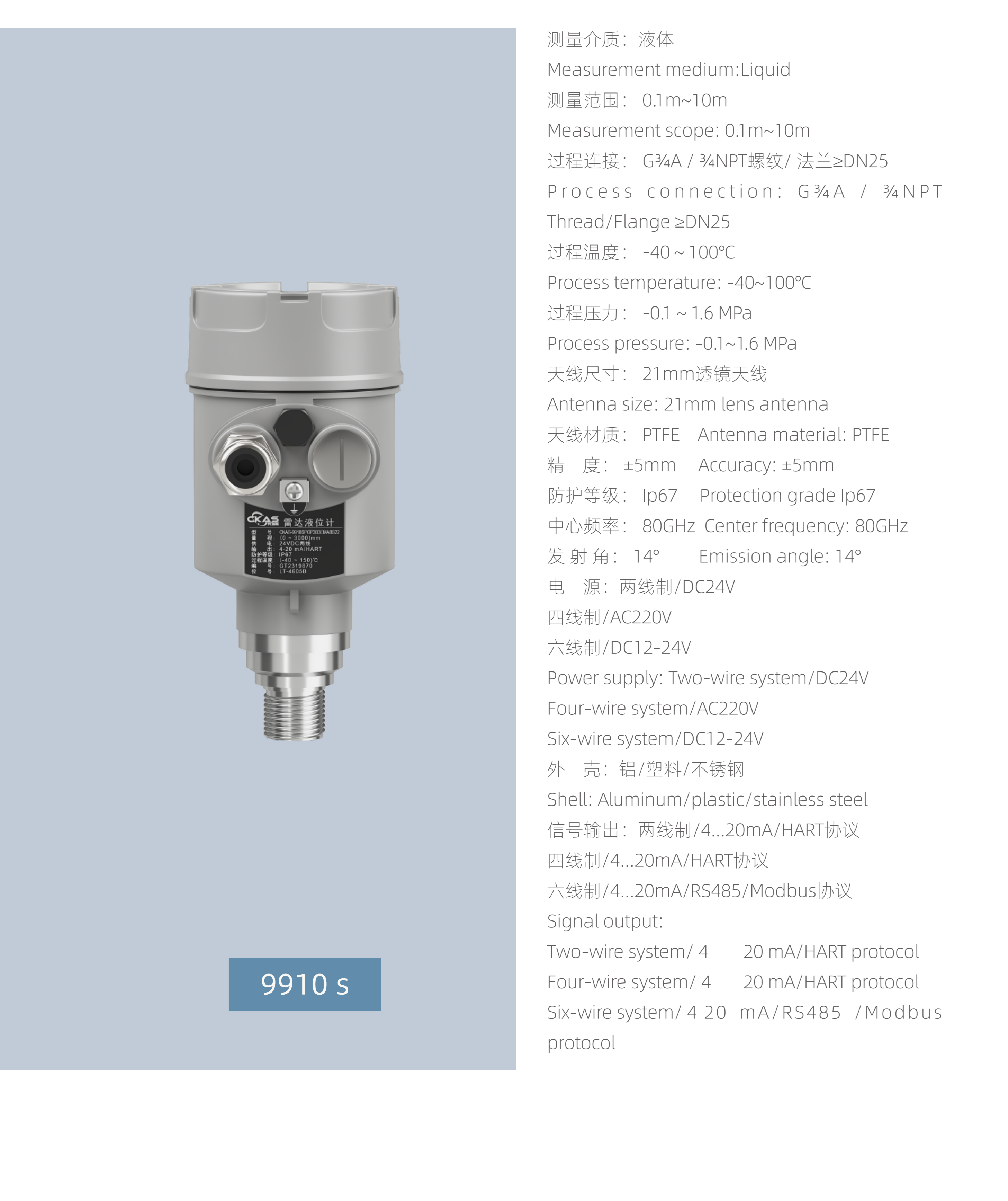

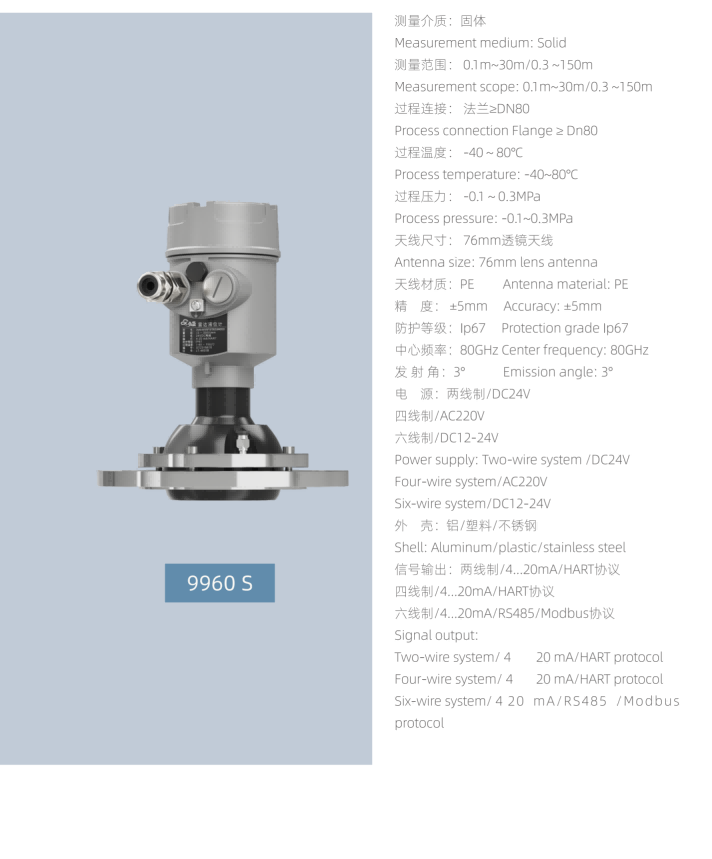

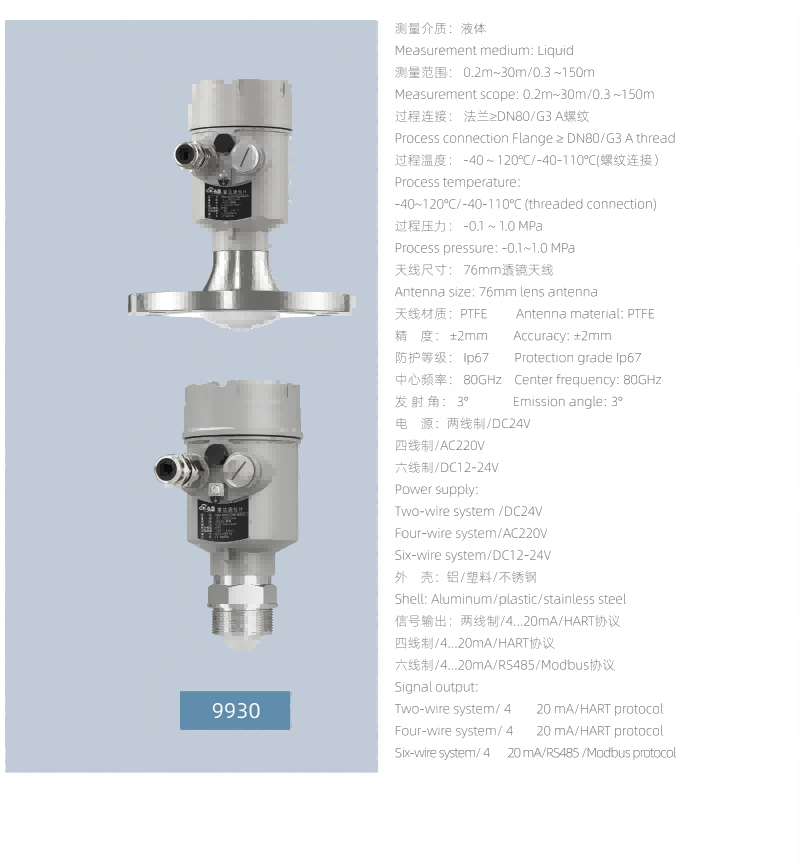

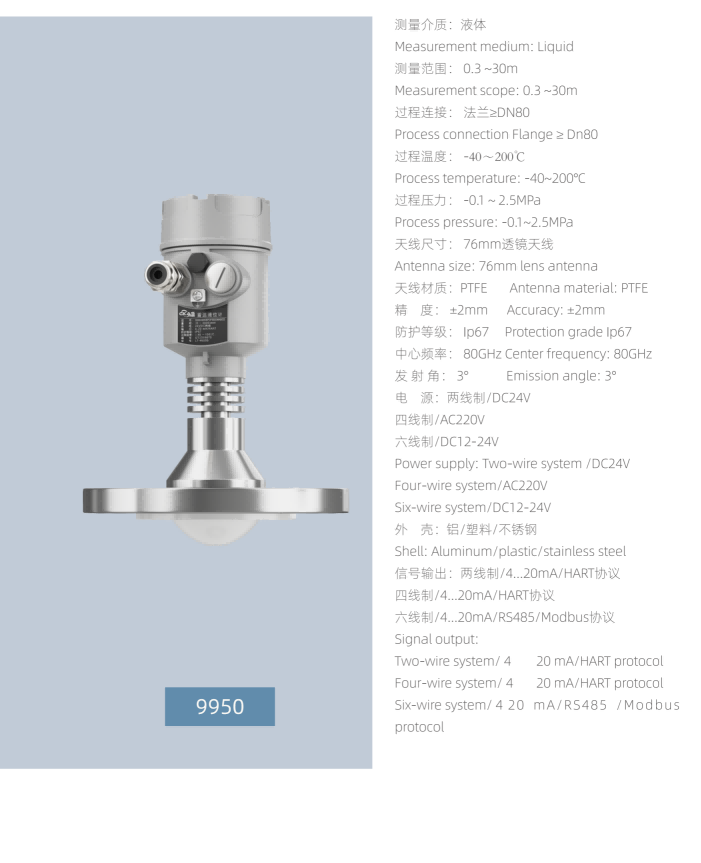

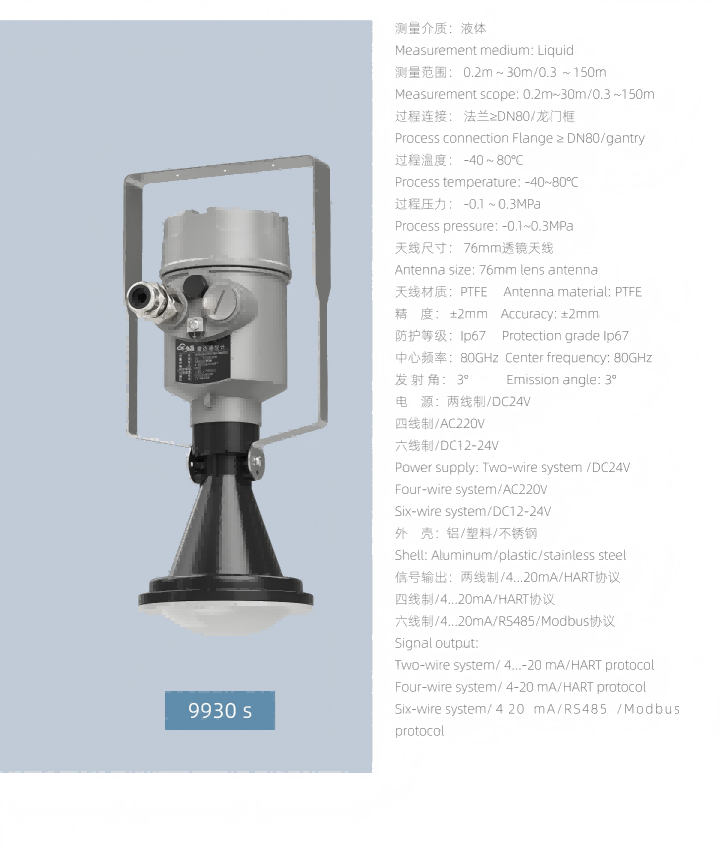

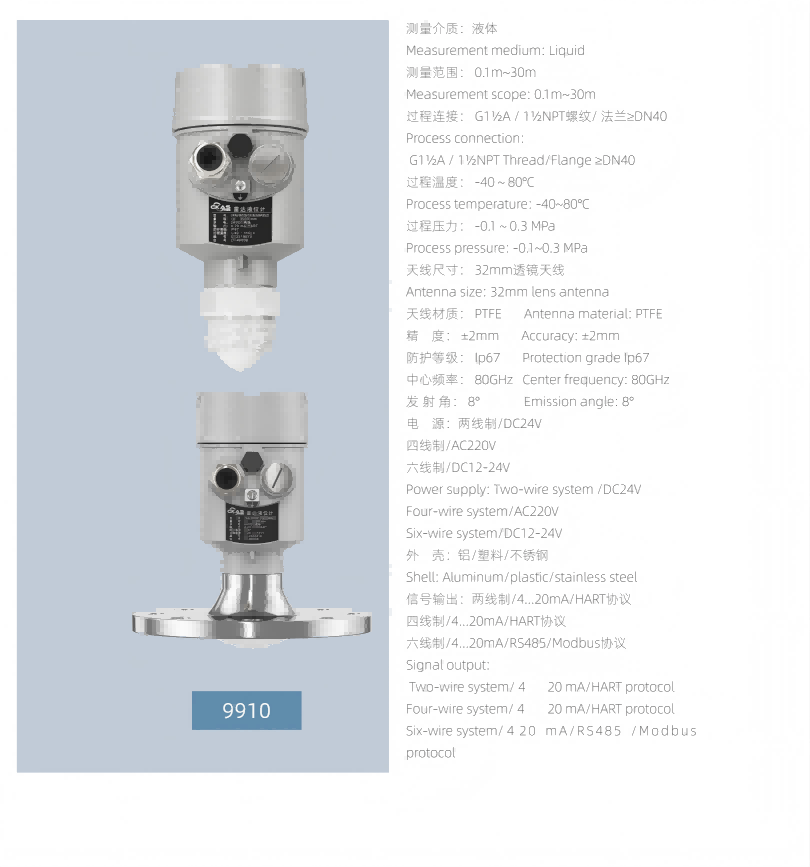

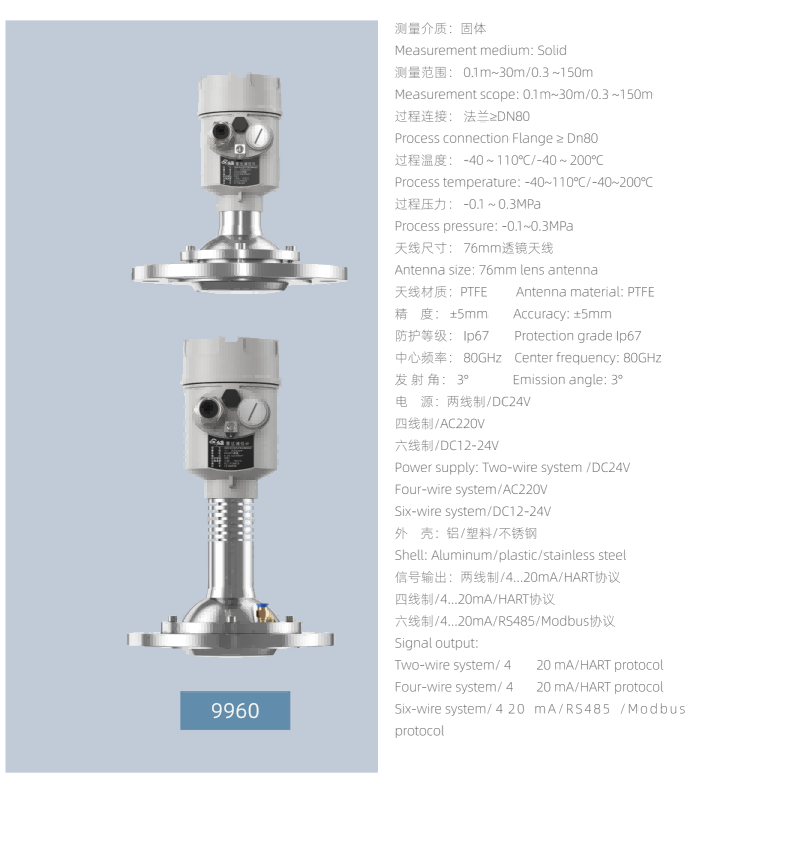

80G调频雷达液位计

80G FM radar level gauge

1.毫米波雷达，测量精度最高可达土2mm，测量最小盲区为0.1m。

1.Millimeter wave radar, the highest measurement accuracy can reach 2 mm soil, measuring the minimum blind area of 0.1 m.

2.更小的天线尺寸，满足了更多的工况场合测量。

2. The smaller the antenna size, to meet the more working conditions of the situation measurement.

3.多种透镜天线，更小的发射角，更集中的能量，回波信号更强，同等工矿条件下，相比于 其他雷达产品具有更高的可靠性。

3. Multiple lens antennas, smaller transmitting angle, more concentrated energy, stronger echo signal, and higher reliability than other radar products under the same industrial and mining conditions.

4.拥有更强的穿透性，在有粘附及凝结的情况下也可以正常使用。

4. With stronger penetration, in the case of adhesion and condensation can also be used normally.

5.动态信号范围更大，对于低介电常数介质的测量更蹴鸾荔吻姝窈弊著匍改挤畦啐吧素想叛氢梓邂靠窕迷脐炕陋头。

5. The dynamic signal range is larger, for the measurement of low permittivity medium is more rapid than ever.

6.多种测量模式，快速测量模式下雷达反应时间小于1S。

6. The radar response time is less than 1s in the fast measurement mode.

安装方式1

Installation Mode 1

螺纹安装(适用于 11S，11，13)

Thread mounting (for 11S, 11,13)

安装在罐直径的1/4处或1/6处

The minimum distance from the tank wall at 1/4 or 1/6 of the tank diameter shall be 2

距离罐壁最小距离应为200mm。

The minimum distance from the tank wall shall be 200mm

安装方式2

Installation Mode 2

法兰安装

Flange mounting

采用法兰安装时仪表需安装在罐体直径的1/4处或1/6处仪表距离罐壁最小距离应大于200mm。

When the flange is used, the instrument should be installed at 1/4 or 1/6 of the tank diameter. The minimum distance between the

（1）基准面

  (1) datum

（2）容器中央或对称轴

  (2) the central or symmetrical axis of the container

安装方式3

Installation Mode 3

吊装 (根据具体的安装条件选用 )

Lifting (selected according to specific installation conditions)

安装要求

Installation requirements

采用法兰安装时仪表需安装在罐体直径的1/4处或1/6处仪表距离罐壁最小距离应大于200mm。

When the flange is used, the instrument should be installed at 1/4 or 1/6 of the tank diameter. The minimum distance between the instrument and the tank wall should be more than 200 mm.

在极端复杂的工况下，以雷达安装点为中心，半径20cm的区域内没有任何障碍物，仪表即可正常工作。

Under extremely complex working conditions, the instrument can work normally without any obstacles in the area with a radius of 20cm, taking the radar installation point as the center.

安装接管示意图

Installation take-over schematic

最大安装短管高度 H max 取决于安装短管管径D及产品发射角的大小。

The maximum height H Max depends on the diameter d of the short pipe and the size of the launch angle of the product.

过长的安装接管，会影响雷达性能。

Too long installation of take-over, will affect the radar performance.
