概述
Overview

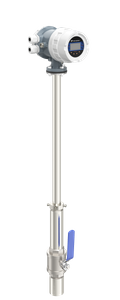

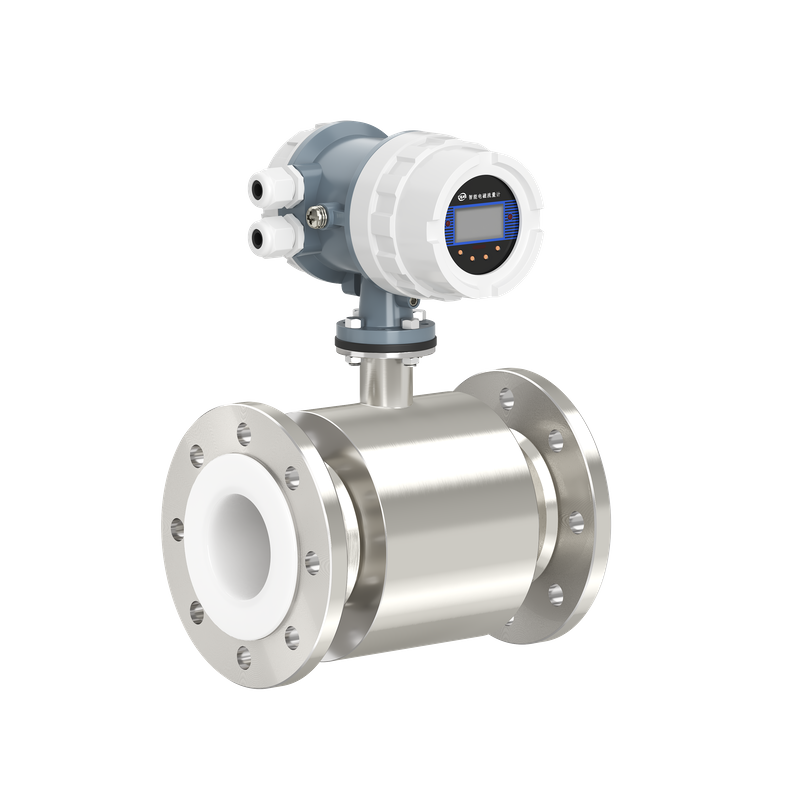

CKAS-FLDC800系列智能电磁流量计是我公司采用国内外最先进的技术研制、开发的全智能型流量计，测量精度高、可靠性高、稳定性好、使用寿命长。在设计产品结构、选材、制造工艺、生产装配和出厂测试等过程中每一个环节我们都非常细致严格，我们还自行设计了一套国内目前最先进的，专用于电磁流量计的生产设备和流量实流标定装置，从而在软件和硬件上都切实保证产品长期的高品质。
CKAS-FLDC800 series intelligent electromagnetic flowmeter is a fully intelligent flowmeter developed by our company with the most advanced technology at home and abroad. It has high measurement accuracy, high reliability, good stability and long service life. In the process of designing product structure, material selection, manufacturing process, production assembly and delivery test, we are very meticulous and strict. We have also designed a set of the most advanced production equipment and flow calibration device dedicated to electromagnetic flowmeters in China, so as to effectively ensure the long-term high quality of products in software and hardware.
测量原理
Measuring Principle
CKAS电磁流量计广泛用于测量导电液体和液固两相流体的体积流量，其测量原理是根据法拉第电磁感应定律，如下图所示，上下两端的两个电磁线圈产生恒定或交变磁场，当导电介质流过电磁流量计时，做切割磁力线运动，此时会产生一个感应电动势并被两个测量电极检测出来，这个感应电动势大小与导电介质流速、磁场的磁感应强度、导体宽度（流量计测量管内径）成正比，然后变送器将它进行放大，根据管道横载面积计算出体积流量，再通过运算就可以得到介质流量。
CKAS electromagnetic flowmeter is widely used to measure the volume flow of conductive liquid and liquid-solid two-phase fluid. Its measuring principle is based on Faraday's law of electromagnetic induction, as shown in the following figure. The two electromagnetic coils at the upper and lower ends generate a constant or alternating magnetic field. When the conductive medium flows through the electromagnetic flowmeter, it cuts the magnetic line of force, and at this time, an induced electromotive force will be generated and detected by the two measuring electrodes. The magnitude of the induced electromotive force is proportional to the flow velocity of the conductive medium, the magnetic induction intensity of the magnetic field and the width of the conductor (the inner diameter of the measuring tube of the flowmeter), and then the transmitter amplifies it to calculate the volume flow velocity according to the cross-sectional area of the pipeline, and then the medium flow velocity can be obtained through calculation.
电磁流量计的特点
Features of Electromagnetic Flowmeter
♦结构方式
♦Structural mode
流量计结构简单，传感器内无活动部件，便于维护，故使用寿命长；无阻流部件，所以无压力损失，能源消耗低，测量精度高。
The flowmeter has simple structure, no moving parts in the sensor, easy maintenance, and long service life; there are no choke parts, so there is no pressure loss, low energy consumption and high measurement accuracy.
♦传感器采用整体密封结构，测量管和外壳合为一体，防潮、防水性好，适宜地下或潮湿环境安装。
♦The sensor is of an integral sealing structure, and the measuring tube and the housing are integrated, with good moisture and water resistance, which is suitable for installation in underground or humid environment.
♦显示功能
♦Display function
高清晰度背光宽温型LCD液晶显示，可在线修改参数。
High-definition backlight wide-temperature LCD display, parameters can be modified online.
中英文菜单操作，使用方便，操作简单，易学易懂。
Chinese and English menus are easy to use, operate, learn and understand.
可显示累积流量、瞬时流量、流速、口径、通讯地址和输出20mA对应的最大流量值（可以任意设定）及流向指示。
It can display the cumulative flow, instantaneous flow, flow velocity, caliber, communication address, maximum flow value corresponding to 20mA output (can be set at will) and flow direction indication.
♦操作设置
♦Operation settings
仅用面板上三/四个键配合液晶提示，即可完成组态和控制，简单、快速、方便、安全。
The configuration and control can be completed simply by using the three/four keys on the panel together with the LCD prompt, which is simple, fast, convenient and safe.
♦励磁方式
♦Excitation mode
采用先进的低频方波恒励磁，抗干扰能力强，工作可靠，性能稳定。
Advanced low-frequency square wave excitation is adopted, with strong anti-interference ability, reliable operation and stable performance.
♦量程自动切换
♦Automatic range switching
流量计在液体流量宽范围变化时，量程可自动切换，保证全量程范围内准确测量，特别适用于昼夜流量范围变化大并需要发出控制信号的场合。
When the flowmeter changes within a wide range of liquid flow, the range can be automatically switched to ensure accurate measurement within the full range, especially suitable for occasions where the day and night flow range changes greatly and control signals need to be sent out.
♦正反流向计量功能
♦Forward and reverse flow metering function
用户可以选择正向计量或反向计量（无特殊要求时，出厂正向计量，反向不计量），内部有三个积算器总量，可分别记录：正向总量、反向总量、差值总量。
Users can select forward metering or reverse metering (if there is no special requirement, the factory default is forward metering, not reverse metering). There are three totalizers inside, which can be recorded separately: forward total, reverse total and difference total.
♦信号输出功能
♦Signal output function
流量计可以输出(4~20)mA标准电流信号和脉冲信号，可与配套设备或微机等其它控制系统配合使用。
The flowmeter can output (4~20) mA standard current signal and pulse signal, and can be used in conjunction with other control systems such as supporting equipment or microcomputer.
♦通讯功能
♦Communication function
具有RS485数字通讯信号输出，同时可选用RS232及HART等现场总线数字通讯输出。
It has RS485 digital communication signal output, and fieldbus digital communication output such as RS232 and HART can be selected at the same time.
♦小信号切除功能
♦Small signal cutoff function
用户可通过显示面板设置下限电压和下限流量，从而切除干扰性小信号流量。
The user can set the lower limit voltage and lower limit flow through the display panel, so as to cut off the interfering small signal flow.
♦自检故障与自诊断功能
♦Self-inspection fault and self-diagnosis function
♦断电保护功能
♦Power-off protection function
采用先进的非易失性存贮器，可有效地保护设置和测量参数。
Advanced non-volatile memory is adopted to effectively protect settings and measuring parameters.
♦密码锁存功能
♦Password lock function
流量计通电后，若需要设定参数，必须输入六位密码才能进行参数设定，从而有效防止无关人员改变仪表参数。
After the flowmeter is powered on, if parameters need to be set, you must enter a six-digit password to set the parameters, so as to effectively prevent irrelevant personnel from changing the instrument parameters.
行业应用
Industry Application
西森FLDC系列智能电磁流量计是一款测量精度高、可靠性高的速度式流量计，广泛用于化工、化纤、食品、造纸、制糖、矿冶、给排水、环保、水利、钢铁、石化、油田、制药等工业领域中，用来测量各种酸、碱、盐溶液、泥浆、矿浆、纸浆、煤水浆、玉米浆、纤维浆、糖浆、石灰浆、污水、冷却原水、盐水、双氧水、啤酒、麦汁、各种饮料、黑液、绿液、药液等导电流体介质体积流量。
SISEN FLDC series intelligent electromagnetic flowmeter is a velocity flowmeter with high measurement accuracy and high reliability. It is widely used in chemical industry, chemical fiber, food, paper making, sugar making, mining and metallurgy, water supply and drainage, environmental protection, water conservancy, steel, petrochemical, oil field, pharmaceutical and other industrial fields. It is used to measure the volume flow of various conductive fluid media such as acid, alkali, salt solution, slurry, ore pulp, pulp, coal-water slurry, corn pulp, fiber pulp, syrup, lime slurry, sewage, cooling raw water, brine, hydrogen peroxide, beer, wort, beverages, black liquor, green liquor and liquid medicine.
技术参数
Technical parameters
电磁流量计外形尺寸
External dimension of electromagnetic flowmeter
电磁流量计的选型方法
VII. Selection Method of Electromagnetic Flowmeter
正确选用电磁流量计是保证用好电磁流量计的前提，选用什么样的电磁流量计应根据用户的工艺流程，被测流体介质的物理性质和化学性质，安装使用环境等因素来确定，从而使电流流量计的结构、通径、流量范围、衬里及电极材料、安装环境、输出信号等参数满足测量上的要求。为正确合理地选用流量计可以根据具体使用状况从以下几个方面来考虑。
The correct selection of electromagnetic flowmeter is the premise of ensuring the proper use of electromagnetic flowmeter. The selected electromagnetic flowmeter shall be determined according to the user's process flow, the physical and chemical properties of the measured fluid medium, the installation and use environment and other factors, so that the structure, diameter, flow range, lining and electrode materials, installation environment, output signal and other parameters of the current flowmeter meet the measurement requirements. In order to correctly and reasonably select the flowmeter, the following aspects can be considered according to the specific service conditions.
电磁流量计通径的选择
Selection of electromagnetic flowmeter diameter
♦首先必须明确以下工艺参数
♦First, the following process parameters must be specified
被测流体的组成、密度、电导率
Composition, density and conductivity of measured fluid
‚最大流量、常用流量、最小流量
‚Maximum flow, common flow and minimum flow
ƒ最高工作压力
ƒMaximum operating pressure
„最高温度、最低温度
„Maximum temperature, minimum temperature
电磁流量计的体积流量是与流体的流速成正比的，因此已知流量和限制一个流速范围就可以求出电磁流量计的通径。
The volume flow of the electromagnetic flowmeter is proportional to the flow velocity of the fluid, so the diameter of the electromagnetic flowmeter can be obtained by knowing the flow velocity and limiting a flow velocity range.
举例：当传感器口径为“DN65mm”，我们根据电磁流量计的流量范围表，可以看到V=5m/s时，被测流体的体积流量Q≈60m3/h,此时我们设定“被测表量程”为60m3/h。跟着对此FLDC系列口径为65mm的产品进行实流标定并出检定报告：
For example, when the sensor diameter is "DN65mm", we can see from the flow range table of the electromagnetic flowmeter that when V=5m/s, the volume flow of the measured fluid Q≈60m3/h, and we set the "range of the measured meter" to 60m3/h. Afterwards, the FLDC series products with a diameter of 65mm are calibrated in real flow and a verification report is issued:
按照Q≈60m3/h（DN65mm）,分别取20%（序号A）,60%（序号B）,100%（序号C）等三个百分比点，所对应的测试流量进行标定。
According to Q≈60m3/h (DN65mm), take three percentage points of 20% (No. A), 60% (No. B) and 100% (No. C) respectively, and calibrate the corresponding test flow.
‚每个百分比点（序号A, B, C）,再分别连续3次进行标定（每次间隔时间为20s）。
‚Calibrate each percentage point (No. A, B, C) for 3 consecutive times (with an interval of 20s).
ƒ如序号A的3次连续标定，可以看到被测表的"被测容积值"与标准表的"标准容积值"之间的误差值，如：66.9167-66.8333=0.084, 0.084/66.8333=0.12%。
ƒFor example, after 3 consecutive calibrations of No. A, the error value between the "measured volume value" of the measured meter and the "standard volume value" of the standard meter can be seen, for example, 66.9167-66.8333=0.084, 0.084/66.8333=0.12%.
„因此，西森的FLDC电磁流量计的所有被测标定点的误差都＜0.5%。所以精度完全在0.5%以内。
„Therefore, the error of all measured calibration points of Sisen's FLDC electromagnetic flowmeter is <0.5%. Therefore, the accuracy is completely within 0.5%.
电磁流量计流量范围表
Electromagnetic flowmeter flow range table
♦根据上表7-1中的流量选择相应的电磁流量计，若选择的电磁流量计的内径与现在工艺管道的内径不符，应进行缩管或扩管。
♦The corresponding electromagnetic flowmeter shall be selected according to the flow in Table 7-1 above. If the inner diameter of the selected electromagnetic flowmeter is inconsistent with that of the existing process pipeline, the pipe shall be contracted or expanded.
♦如管道进行缩管，若考虑因缩管引起一些压力损失可以根据附录2"附装异径管压力损失"进行计算。
♦If the pipe is contracted, some pressure losses caused by contraction can be calculated according to Appendix 2 "Pressure Loss of Attached Reducer".
从产品价格和精度上考虑，可以选择适当流速口径的电磁流量计，同时相对减少投资。
Considering the product price and accuracy, the electromagnetic flowmeter with appropriate flow velocity and caliber can be selected, while the investment is relatively reduced.
电极材料的选择
Selection of electrode materials
♦应根据被测介质的腐蚀性来选择电极材料，请查阅介质腐蚀性的相关资料。
♦The electrode material shall be selected according to the corrosiveness of the measured medium. Please consult the relevant information on the corrosiveness of the medium.
♦对于特殊介质应作腐蚀性试验，具体如表7-2所示。
♦Corrosion test shall be carried out for special media, as shown in Table 7-2.
电极材料的选择
Selection of electrode materials
♦应根据被测介质的腐蚀性来选择电极材料，请查阅介质腐蚀性的相关资料。
♦The electrode material shall be selected according to the corrosiveness of the measured medium. Please consult the relevant information on the corrosiveness of the medium.
♦对于特殊介质应作腐蚀性试验，具体如表7-2所示。
♦Corrosion test shall be carried out for special media, as shown in Table 7-2.
衬里材料的选择
Choice of lining material
♦应根据被测介质的腐蚀性、磨损性和温度来选择衬里材料，具体如表7-3所示。
♦The lining material shall be selected according to the corrosiveness, abrasion and temperature of the measured medium, as shown in Table 7-3.
。
流量计结构形式的选择
Selection of flowmeter structure
1) 一体式
1) Integrated
♦电磁流量计完全省去了转换器与传感器之间的连线，价格及安装费用较经济，显示直观；
♦The electromagnetic flowmeter completely saves the connection between the converter and the sensor, and the price and installation cost are relatively economical and the display is intuitive;
♦一体式流量计适用于大多数应用场合，特别适用于低电导率流体介质的流量测量，但不适用于高温流体，剧烈振动，严重滴水和浸水的场合；
♦The integrated flowmeter is suitable for most applications, especially for flow measurement of fluid medium with low conductivity, but not suitable for high-temperature fluid, severe vibration, severe dripping and immersion;
♦若安装在不易接近的场所，则维护不方便；
♦It is inconvenient to maintain if it is installed in an inaccessible place;
♦一体式默认防护等级为IP65；
♦The integrated default IP grade is IP65;
2) 分体式
2) Split
在以下情况适用时选用分体式：
Split type shall be selected when the following conditions apply:
♦环境温度或转换器表面温度大于55°C；
♦The ambient temperature or converter surface temperature is greater than 55°C;
♦管道震动较大；
♦Large pipe vibration;
♦会对转换器的铝壳严重腐蚀；
♦It will seriously corrode the aluminum housing of the converter;
♦现场湿度较大或有腐蚀性气体；
♦High humidity or corrosive gas on site;
♦流量计装在高空或井下等调试不方便；
♦It is inconvenient to install the flowmeter at high altitude or underground for commissioning;
说明：
Notes:
♦分体式电磁流量计的传感器可安装于工艺管道上，也可长期埋于地下积水场所（IP68型），而智能转换器安装在仪表室或传感器附近；
♦The sensor of the split electromagnetic flowmeter can be installed on the process pipeline or buried in underground water accumulation places (IP68 type) for a long time, while the intelligent converter is installed near the instrument room or sensor;
♦传感器和转换器分开安装于两个不同的地点，并使用二芯屏蔽电缆线及二芯橡套软电缆线将它们连接起来，一般情况下电缆线长度不能超过30m,以保证测量性能；
♦The sensor and converter are installed at two different places separately, and connected by two-core shielded cable and two-core rubber sheathed flexible cable. Generally, the cable length shall not exceed 30m to ensure the measurement performance;
♦传感器的安装尺寸与一体式相同，转换器为墙挂式安装。
♦The installation size of the sensor is the same as that of the integrated sensor, and the converter is wall-mounted.
额定压力的选择
Selection of rated pressure
♦实际最高工作压力必须小于流量计的额定工作压力。
♦The actual maximum operating pressure must be less than the rated operating pressure of the flowmeter.
工作温度的选择
Selection of operating temperature
♦最高工作温度和最低工作温度必须符合流量计规定的温度要求。
♦The maximum operating temperature and the minimum operating temperature must meet the temperature requirements specified for the flowmeter.
输出信号的选择
Selection of output signal
♦(4~20)mA输出：适用于长距离模拟信号传输的场合；
♦(4~20) mA output: suitable for long-distance analog signal transmission;
♦频率/脉冲输出：用作仪表标定、累积流量输出；
♦Frequency/pulse output: used for instrument calibration and cumulative flow output;
♦Modbus RTU通讯协议（RS485）：可以支持多台电磁流量计联网、长距离数据传输；
♦Modbus RTU communication protocol (RS485): It can support the networking and long-distance data transmission of multiple electromagnetic flowmeters;
用户需要根据实际情况和配套仪器设备来选择输出信号。
The user needs to select the output signal according to the actual situation and the supporting instruments and equipment.
工作电源的选择
Selection of operating power supply
♦110V/220V（交流）：适用于有交流供电电源的应用场合（常用）；
♦110V/220V (AC): suitable for applications with AC power supply (commonly used);
♦24V（直流）：在防爆等一些特殊应用场合要求使用24V直流电源；
♦24V (DC): 24V DC power supply is required for some special applications such as explosion protection;
接地环的选择
Selection of grounding ring
♦接地环用来将被测介质接地，提高电磁流量计测量的稳定性。但接地环需要与被测介质接触，存在被腐蚀和磨损的可能性，需要定期更换。
♦The grounding ring is used to ground the measured medium and improve the measurement stability of the electromagnetic flowmeter. However, the grounding ring needs to be in contact with the measured medium, which may be corroded and worn and needs to be replaced regularly.
♦西森FLDC系列电磁流量计可采用接地电极的结构，其作用是在一般情况下能长期有效的保证接地，保证测量精度,所以一般不再需要接地环。若杂散电流过大，如电解槽沿着电解液的泄漏电流影响电磁流量计正常测量时，建议带有接地环。
♦SISEN FLDC series electromagnetic flowmeter can adopt the structure of grounding electrode, and its function is to ensure long-term and effective grounding and measurement accuracy under normal circumstances, so grounding ring is generally not required. If the stray current is too large, for example, the leakage current of the electrolytic cell along the electrolyte affects the normal measurement of the electromagnetic flowmeter, it is recommended to provide a grounding ring.
♦一些小口径的电磁流量计只有2个电极，用户可根据现场需要配置双接地环。
♦Some small-diameter electromagnetic flowmeters have only 2 electrodes, and users can configure double grounding rings based on the site requirements.
♦在安装接地环时，接地环需要安装在准确的管道位置，以免影响被测介质的流场。
♦When installing the grounding ring, the grounding ring needs to be installed in an accurate pipeline position, so as not to affect the flow field of the measured medium.
防护等级的选择
Selection of IP grade
♦防护等级应根据实际情况来选择：传感器装在地面以下，如经常受水浸泡，应选用IP68；传感器安装在地面以上非暴露环境的，应选用IP65。
♦The IP grade shall be selected in accordance with the actual situation: If the sensor is installed below the ground and often soaked in water, IP68 shall be selected; if the sensor is installed above the ground in a non-exposed environment, IP65 shall be selected
电磁流量计的选型步骤
Selection Steps of Electromagnetic Flowmeter
详细了解流量计测量介质及相关工艺参数
Detailed understanding of flowmeter measuring medium and relevant process parameters
电磁流量计正确选型需要详细了解的工艺参数如下表所示:
The process parameters that need to be understood in detail for the correct selection of electromagnetic flowmeter are shown in the following table:
电磁流量计公称通径的选择
Selection of nominal diameter of electromagnetic flowmeter
♦最大流量和最小流量必须参照表7-1的流量范围。
♦The maximum flow and minimum flow must refer to the flow range in Table 7-1.
按照西森FLDC电磁流量计选型表确定型号，如表8-2所示。
The model shall be determined as per the Selection Table of SISEN FLDC Electromagnetic Flowmeter, as shown in Table 8-2.
概述
Overview
CKAS-FLDC800系列智能电磁流量计是我公司采用国内外最先进的技术研制、开发的全智能型流量计，测量精度高、可靠性高、稳定性好、使用寿命长。在设计产品结构、选材、制造工艺、生产装配和出厂测试等过程中每一个环节我们都非常细致严格，我们还自行设计了一套国内目前最先进的，专用于电磁流量计的生产设备和流量实流标定装置，从而在软件和硬件上都切实保证产品长期的高品质。
CKAS-FLDC800 series intelligent electromagnetic flowmeter is a fully intelligent flowmeter developed by our company with the most advanced technology at home and abroad. It has high measurement accuracy, high reliability, good stability and long service life. In the process of designing product structure, material selection, manufacturing process, production assembly and delivery test, we are very meticulous and strict. We have also designed a set of the most advanced production equipment and flow calibration device dedicated to electromagnetic flowmeters in China, so as to effectively ensure the long-term high quality of products in software and hardware.
测量原理
Measuring Principle
CKAS电磁流量计广泛用于测量导电液体和液固两相流体的体积流量，其测量原理是根据法拉第电磁感应定律，如下图所示，上下两端的两个电磁线圈产生恒定或交变磁场，当导电介质流过电磁流量计时，做切割磁力线运动，此时会产生一个感应电动势并被两个测量电极检测出来，这个感应电动势大小与导电介质流速、磁场的磁感应强度、导体宽度（流量计测量管内径）成正比，然后变送器将它进行放大，根据管道横载面积计算出体积流量，再通过运算就可以得到介质流量。
CKAS electromagnetic flowmeter is widely used to measure the volume flow of conductive liquid and liquid-solid two-phase fluid. Its measuring principle is based on Faraday's law of electromagnetic induction, as shown in the following figure. The two electromagnetic coils at the upper and lower ends generate a constant or alternating magnetic field. When the conductive medium flows through the electromagnetic flowmeter, it cuts the magnetic line of force, and at this time, an induced electromotive force will be generated and detected by the two measuring electrodes. The magnitude of the induced electromotive force is proportional to the flow velocity of the conductive medium, the magnetic induction intensity of the magnetic field and the width of the conductor (the inner diameter of the measuring tube of the flowmeter), and then the transmitter amplifies it to calculate the volume flow velocity according to the cross-sectional area of the pipeline, and then the medium flow velocity can be obtained through calculation.
电磁流量计的特点
Features of Electromagnetic Flowmeter
♦结构方式
♦Structural mode
流量计结构简单，传感器内无活动部件，便于维护，故使用寿命长；无阻流部件，所以无压力损失，能源消耗低，测量精度高。
The flowmeter has simple structure, no moving parts in the sensor, easy maintenance, and long service life; there are no choke parts, so there is no pressure loss, low energy consumption and high measurement accuracy.
♦传感器采用整体密封结构，测量管和外壳合为一体，防潮、防水性好，适宜地下或潮湿环境安装。
♦The sensor is of an integral sealing structure, and the measuring tube and the housing are integrated, with good moisture and water resistance, which is suitable for installation in underground or humid environment.
♦显示功能
♦Display function
高清晰度背光宽温型LCD液晶显示，可在线修改参数。
High-definition backlight wide-temperature LCD display, parameters can be modified online.
中英文菜单操作，使用方便，操作简单，易学易懂。
Chinese and English menus are easy to use, operate, learn and understand.
可显示累积流量、瞬时流量、流速、口径、通讯地址和输出20mA对应的最大流量值（可以任意设定）及流向指示。
It can display the cumulative flow, instantaneous flow, flow velocity, caliber, communication address, maximum flow value corresponding to 20mA output (can be set at will) and flow direction indication.
♦操作设置
♦Operation settings
仅用面板上三/四个键配合液晶提示，即可完成组态和控制，简单、快速、方便、安全。
The configuration and control can be completed simply by using the three/four keys on the panel together with the LCD prompt, which is simple, fast, convenient and safe.
♦励磁方式
♦Excitation mode
采用先进的低频方波恒励磁，抗干扰能力强，工作可靠，性能稳定。
Advanced low-frequency square wave excitation is adopted, with strong anti-interference ability, reliable operation and stable performance.
♦量程自动切换
♦Automatic range switching
流量计在液体流量宽范围变化时，量程可自动切换，保证全量程范围内准确测量，特别适用于昼夜流量范围变化大并需要发出控制信号的场合。
When the flowmeter changes within a wide range of liquid flow, the range can be automatically switched to ensure accurate measurement within the full range, especially suitable for occasions where the day and night flow range changes greatly and control signals need to be sent out.
♦正反流向计量功能
♦Forward and reverse flow metering function
用户可以选择正向计量或反向计量（无特殊要求时，出厂正向计量，反向不计量），内部有三个积算器总量，可分别记录：正向总量、反向总量、差值总量。
Users can select forward metering or reverse metering (if there is no special requirement, the factory default is forward metering, not reverse metering). There are three totalizers inside, which can be recorded separately: forward total, reverse total and difference total.
♦信号输出功能
♦Signal output function
流量计可以输出(4~20)mA标准电流信号和脉冲信号，可与配套设备或微机等其它控制系统配合使用。
The flowmeter can output (4~20) mA standard current signal and pulse signal, and can be used in conjunction with other control systems such as supporting equipment or microcomputer.
♦通讯功能
♦Communication function
具有RS485数字通讯信号输出，同时可选用RS232及HART等现场总线数字通讯输出。
It has RS485 digital communication signal output, and fieldbus digital communication output such as RS232 and HART can be selected at the same time.
♦小信号切除功能
♦Small signal cutoff function
用户可通过显示面板设置下限电压和下限流量，从而切除干扰性小信号流量。
The user can set the lower limit voltage and lower limit flow through the display panel, so as to cut off the interfering small signal flow.
♦自检故障与自诊断功能
♦Self-inspection fault and self-diagnosis function
♦断电保护功能
♦Power-off protection function
采用先进的非易失性存贮器，可有效地保护设置和测量参数。
Advanced non-volatile memory is adopted to effectively protect settings and measuring parameters.
♦密码锁存功能
♦Password lock function
流量计通电后，若需要设定参数，必须输入六位密码才能进行参数设定，从而有效防止无关人员改变仪表参数。
After the flowmeter is powered on, if parameters need to be set, you must enter a six-digit password to set the parameters, so as to effectively prevent irrelevant personnel from changing the instrument parameters.
行业应用
Industry Application

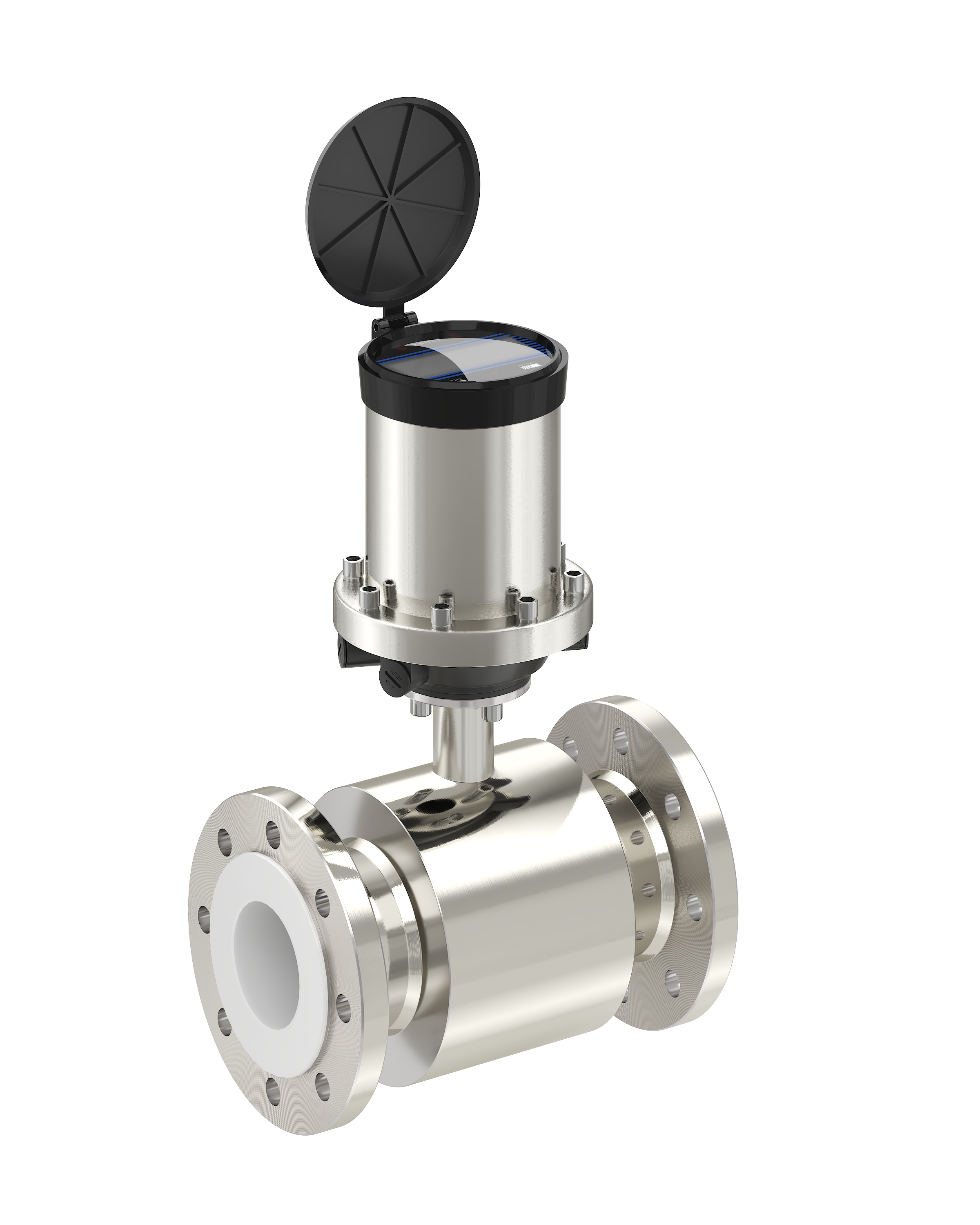

西森FLDC系列智能电磁流量计是一款测量精度高、可靠性高的速度式流量计，广泛用于化工、化纤、食品、造纸、制糖、矿冶、给排水、环保、水利、钢铁、石化、油田、制药等工业领域中，用来测量各种酸、碱、盐溶液、泥浆、矿浆、纸浆、煤水浆、玉米浆、纤维浆、糖浆、石灰浆、污水、冷却原水、盐水、双氧水、啤酒、麦汁、各种饮料、黑液、绿液、药液等导电流体介质体积流量。
SISEN FLDC series intelligent electromagnetic flowmeter is a velocity flowmeter with high measurement accuracy and high reliability. It is widely used in chemical industry, chemical fiber, food, paper making, sugar making, mining and metallurgy, water supply and drainage, environmental protection, water conservancy, steel, petrochemical, oil field, pharmaceutical and other industrial fields. It is used to measure the volume flow of various conductive fluid media such as acid, alkali, salt solution, slurry, ore pulp, pulp, coal-water slurry, corn pulp, fiber pulp, syrup, lime slurry, sewage, cooling raw water, brine, hydrogen peroxide, beer, wort, beverages, black liquor, green liquor and liquid medicine.
技术参数
Technical parameters
电磁流量计外形尺寸
External dimension of electromagnetic flowmeter
电磁流量计的选型方法
VII. Selection Method of Electromagnetic Flowmeter
正确选用电磁流量计是保证用好电磁流量计的前提，选用什么样的电磁流量计应根据用户的工艺流程，被测流体介质的物理性质和化学性质，安装使用环境等因素来确定，从而使电流流量计的结构、通径、流量范围、衬里及电极材料、安装环境、输出信号等参数满足测量上的要求。为正确合理地选用流量计可以根据具体使用状况从以下几个方面来考虑。
The correct selection of electromagnetic flowmeter is the premise of ensuring the proper use of electromagnetic flowmeter. The selected electromagnetic flowmeter shall be determined according to the user's process flow, the physical and chemical properties of the measured fluid medium, the installation and use environment and other factors, so that the structure, diameter, flow range, lining and electrode materials, installation environment, output signal and other parameters of the current flowmeter meet the measurement requirements. In order to correctly and reasonably select the flowmeter, the following aspects can be considered according to the specific service conditions.
电磁流量计通径的选择
Selection of electromagnetic flowmeter diameter
♦首先必须明确以下工艺参数
♦First, the following process parameters must be specified
被测流体的组成、密度、电导率
Composition, density and conductivity of measured fluid
‚最大流量、常用流量、最小流量
‚Maximum flow, common flow and minimum flow
ƒ最高工作压力
ƒMaximum operating pressure
„最高温度、最低温度
„Maximum temperature, minimum temperature
电磁流量计的体积流量是与流体的流速成正比的，因此已知流量和限制一个流速范围就可以求出电磁流量计的通径。
The volume flow of the electromagnetic flowmeter is proportional to the flow velocity of the fluid, so the diameter of the electromagnetic flowmeter can be obtained by knowing the flow velocity and limiting a flow velocity range.
举例：当传感器口径为“DN65mm”，我们根据电磁流量计的流量范围表，可以看到V=5m/s时，被测流体的体积流量Q≈60m3/h,此时我们设定“被测表量程”为60m3/h。跟着对此FLDC系列口径为65mm的产品进行实流标定并出检定报告：
For example, when the sensor diameter is "DN65mm", we can see from the flow range table of the electromagnetic flowmeter that when V=5m/s, the volume flow of the measured fluid Q≈60m3/h, and we set the "range of the measured meter" to 60m3/h. Afterwards, the FLDC series products with a diameter of 65mm are calibrated in real flow and a verification report is issued:
按照Q≈60m3/h（DN65mm）,分别取20%（序号A）,60%（序号B）,100%（序号C）等三个百分比点，所对应的测试流量进行标定。
According to Q≈60m3/h (DN65mm), take three percentage points of 20% (No. A), 60% (No. B) and 100% (No. C) respectively, and calibrate the corresponding test flow.
‚每个百分比点（序号A, B, C）,再分别连续3次进行标定（每次间隔时间为20s）。
‚Calibrate each percentage point (No. A, B, C) for 3 consecutive times (with an interval of 20s).
ƒ如序号A的3次连续标定，可以看到被测表的"被测容积值"与标准表的"标准容积值"之间的误差值，如：66.9167-66.8333=0.084, 0.084/66.8333=0.12%。
ƒFor example, after 3 consecutive calibrations of No. A, the error value between the "measured volume value" of the measured meter and the "standard volume value" of the standard meter can be seen, for example, 66.9167-66.8333=0.084, 0.084/66.8333=0.12%.
„因此，西森的FLDC电磁流量计的所有被测标定点的误差都＜0.5%。所以精度完全在0.5%以内。
„Therefore, the error of all measured calibration points of Sisen's FLDC electromagnetic flowmeter is <0.5%. Therefore, the accuracy is completely within 0.5%.
电磁流量计流量范围表
Electromagnetic flowmeter flow range table
♦根据上表7-1中的流量选择相应的电磁流量计，若选择的电磁流量计的内径与现在工艺管道的内径不符，应进行缩管或扩管。
♦The corresponding electromagnetic flowmeter shall be selected according to the flow in Table 7-1 above. If the inner diameter of the selected electromagnetic flowmeter is inconsistent with that of the existing process pipeline, the pipe shall be contracted or expanded.
♦如管道进行缩管，若考虑因缩管引起一些压力损失可以根据附录2"附装异径管压力损失"进行计算。
♦If the pipe is contracted, some pressure losses caused by contraction can be calculated according to Appendix 2 "Pressure Loss of Attached Reducer".
从产品价格和精度上考虑，可以选择适当流速口径的电磁流量计，同时相对减少投资。
Considering the product price and accuracy, the electromagnetic flowmeter with appropriate flow velocity and caliber can be selected, while the investment is relatively reduced.
电极材料的选择
Selection of electrode materials
♦应根据被测介质的腐蚀性来选择电极材料，请查阅介质腐蚀性的相关资料。
♦The electrode material shall be selected according to the corrosiveness of the measured medium. Please consult the relevant information on the corrosiveness of the medium.
♦对于特殊介质应作腐蚀性试验，具体如表7-2所示。
♦Corrosion test shall be carried out for special media, as shown in Table 7-2.
电极材料的选择
Selection of electrode materials
♦应根据被测介质的腐蚀性来选择电极材料，请查阅介质腐蚀性的相关资料。
♦The electrode material shall be selected according to the corrosiveness of the measured medium. Please consult the relevant information on the corrosiveness of the medium.
♦对于特殊介质应作腐蚀性试验，具体如表7-2所示。
♦Corrosion test shall be carried out for special media, as shown in Table 7-2.
衬里材料的选择
Choice of lining material
♦应根据被测介质的腐蚀性、磨损性和温度来选择衬里材料，具体如表7-3所示。
♦The lining material shall be selected according to the corrosiveness, abrasion and temperature of the measured medium, as shown in Table 7-3.
。
流量计结构形式的选择
Selection of flowmeter structure
1) 一体式
1) Integrated
♦电磁流量计完全省去了转换器与传感器之间的连线，价格及安装费用较经济，显示直观；
♦The electromagnetic flowmeter completely saves the connection between the converter and the sensor, and the price and installation cost are relatively economical and the display is intuitive;
♦一体式流量计适用于大多数应用场合，特别适用于低电导率流体介质的流量测量，但不适用于高温流体，剧烈振动，严重滴水和浸水的场合；
♦The integrated flowmeter is suitable for most applications, especially for flow measurement of fluid medium with low conductivity, but not suitable for high-temperature fluid, severe vibration, severe dripping and immersion;
♦若安装在不易接近的场所，则维护不方便；
♦It is inconvenient to maintain if it is installed in an inaccessible place;
♦一体式默认防护等级为IP65；
♦The integrated default IP grade is IP65;
2) 分体式
2) Split
在以下情况适用时选用分体式：
Split type shall be selected when the following conditions apply:
♦环境温度或转换器表面温度大于55°C；
♦The ambient temperature or converter surface temperature is greater than 55°C;
♦管道震动较大；
♦Large pipe vibration;
♦会对转换器的铝壳严重腐蚀；
♦It will seriously corrode the aluminum housing of the converter;
♦现场湿度较大或有腐蚀性气体；
♦High humidity or corrosive gas on site;
♦流量计装在高空或井下等调试不方便；
♦It is inconvenient to install the flowmeter at high altitude or underground for commissioning;
说明：
Notes:
♦分体式电磁流量计的传感器可安装于工艺管道上，也可长期埋于地下积水场所（IP68型），而智能转换器安装在仪表室或传感器附近；
♦The sensor of the split electromagnetic flowmeter can be installed on the process pipeline or buried in underground water accumulation places (IP68 type) for a long time, while the intelligent converter is installed near the instrument room or sensor;
♦传感器和转换器分开安装于两个不同的地点，并使用二芯屏蔽电缆线及二芯橡套软电缆线将它们连接起来，一般情况下电缆线长度不能超过30m,以保证测量性能；
♦The sensor and converter are installed at two different places separately, and connected by two-core shielded cable and two-core rubber sheathed flexible cable. Generally, the cable length shall not exceed 30m to ensure the measurement performance;
♦传感器的安装尺寸与一体式相同，转换器为墙挂式安装。
♦The installation size of the sensor is the same as that of the integrated sensor, and the converter is wall-mounted.
额定压力的选择
Selection of rated pressure
♦实际最高工作压力必须小于流量计的额定工作压力。
♦The actual maximum operating pressure must be less than the rated operating pressure of the flowmeter.
工作温度的选择
Selection of operating temperature
♦最高工作温度和最低工作温度必须符合流量计规定的温度要求。
♦The maximum operating temperature and the minimum operating temperature must meet the temperature requirements specified for the flowmeter.
输出信号的选择
Selection of output signal
♦(4~20)mA输出：适用于长距离模拟信号传输的场合；
♦(4~20) mA output: suitable for long-distance analog signal transmission;
♦频率/脉冲输出：用作仪表标定、累积流量输出；
♦Frequency/pulse output: used for instrument calibration and cumulative flow output;
♦Modbus RTU通讯协议（RS485）：可以支持多台电磁流量计联网、长距离数据传输；
♦Modbus RTU communication protocol (RS485): It can support the networking and long-distance data transmission of multiple electromagnetic flowmeters;
用户需要根据实际情况和配套仪器设备来选择输出信号。
The user needs to select the output signal according to the actual situation and the supporting instruments and equipment.
工作电源的选择
Selection of operating power supply
♦110V/220V（交流）：适用于有交流供电电源的应用场合（常用）；
♦110V/220V (AC): suitable for applications with AC power supply (commonly used);
♦24V（直流）：在防爆等一些特殊应用场合要求使用24V直流电源；
♦24V (DC): 24V DC power supply is required for some special applications such as explosion protection;
接地环的选择
Selection of grounding ring
♦接地环用来将被测介质接地，提高电磁流量计测量的稳定性。但接地环需要与被测介质接触，存在被腐蚀和磨损的可能性，需要定期更换。
♦The grounding ring is used to ground the measured medium and improve the measurement stability of the electromagnetic flowmeter. However, the grounding ring needs to be in contact with the measured medium, which may be corroded and worn and needs to be replaced regularly.
♦西森FLDC系列电磁流量计可采用接地电极的结构，其作用是在一般情况下能长期有效的保证接地，保证测量精度,所以一般不再需要接地环。若杂散电流过大，如电解槽沿着电解液的泄漏电流影响电磁流量计正常测量时，建议带有接地环。
♦SISEN FLDC series electromagnetic flowmeter can adopt the structure of grounding electrode, and its function is to ensure long-term and effective grounding and measurement accuracy under normal circumstances, so grounding ring is generally not required. If the stray current is too large, for example, the leakage current of the electrolytic cell along the electrolyte affects the normal measurement of the electromagnetic flowmeter, it is recommended to provide a grounding ring.
♦一些小口径的电磁流量计只有2个电极，用户可根据现场需要配置双接地环。
♦Some small-diameter electromagnetic flowmeters have only 2 electrodes, and users can configure double grounding rings based on the site requirements.
♦在安装接地环时，接地环需要安装在准确的管道位置，以免影响被测介质的流场。
♦When installing the grounding ring, the grounding ring needs to be installed in an accurate pipeline position, so as not to affect the flow field of the measured medium.
防护等级的选择
Selection of IP grade
♦防护等级应根据实际情况来选择：传感器装在地面以下，如经常受水浸泡，应选用IP68；传感器安装在地面以上非暴露环境的，应选用IP65。
♦The IP grade shall be selected in accordance with the actual situation: If the sensor is installed below the ground and often soaked in water, IP68 shall be selected; if the sensor is installed above the ground in a non-exposed environment, IP65 shall be selected
电磁流量计的选型步骤
Selection Steps of Electromagnetic Flowmeter
详细了解流量计测量介质及相关工艺参数
Detailed understanding of flowmeter measuring medium and relevant process parameters
电磁流量计正确选型需要详细了解的工艺参数如下表所示:
The process parameters that need to be understood in detail for the correct selection of electromagnetic flowmeter are shown in the following table:
电磁流量计公称通径的选择
Selection of nominal diameter of electromagnetic flowmeter
♦最大流量和最小流量必须参照表7-1的流量范围。
♦The maximum flow and minimum flow must refer to the flow range in Table 7-1.
按照西森FLDC电磁流量计选型表确定型号，如表8-2所示。
The model shall be determined as per the Selection Table of SISEN FLDC Electromagnetic Flowmeter, as shown in Table 8-2.
