气体、液体、油等与接触部分材质相兼容的介质
-0.1...0~0.001...100MPa
量程的1.5倍或110Mpa
表压、绝压或密封参考压力
典型±0.1%FS,最大±0.5%FS（包括非线性、迟滞和重复性）
典型±0.1%FS/年，最大±0.2%FS/年
15-30 VDC
-30 ~ 80°C
4~20mA (二线)0~10/20mA (三线)0/1~5/10V (三线)
壳体：不锈钢：IGrl8Ni9Ti
不锈钢316L
氟橡胶或丁腈橡胶
Exiall Ct4
IP65
G1/2,M12,M201.5、卡箍、法兰或特殊设计
概述
Overview
CKAS-8102PTEx型压力变送器采用高性能，高稳定性扩散硅压力芯体或陶瓷压阻芯体作为压力测量元件，传感器信号经过专用信号处理转换成标准信号输出，经过长期老化及稳定性筛选，产品性能稳定可靠，应用于环境比较恶劣的现场，同时能够实现现场压力显示，零点、满程可迁移等要求。
The CKAS-8104PTEx pressure transmitter adopts a high-performance and high-stability diffusion Silicon pressure core or porcelain pressure resistance core as a pressure measurement element, and the sensor signal is transformed into a standard signal output after special signal processing. After long-term aging and stability screening, the product performance is stable and reliable, which is applied to the field with a severe environment. It can also realize the field pressure display, zero point, the migration after full range, and other requirements.
CKAS-8102PTEx型压力变送器满足隔爆要求，适用于高端场合，且性能稳定。是国际最好的优质产品。该产品广泛应用于工业过程控制、石油、化工、冶金等行业。
The CKAS-8102PTEx pressure transmitter meets the explosion suppression requirement and is suitable for high-end applications with stable performance. It is the world's best quality product. It is widely used in industrial process control, petroleum, chemical, and metallurgical industries.
产品特点
■Product characteristics
※扩散硅压阻传感器
※Diffusion Silicon Pressure-resistance Sensor
※坚固密封良好的铝合金接线盒，户外安装使用
※Sticky and well-sealed aluminum alloy junction box, used for outdoor installation
※用于气体、液体、蒸汽的压力测量
※For pressure measurement of gas, liquid, steam
※提供低压、中压、高压丰富的压力量程范围
※Provide a rich pressure range of low-pressure, medium-pressure, and high-pressure
※多种输出信号可选择，可按客户要求定制
※A variety of output signals are available and can be tailored to customer requirements
※隔离防爆
※Isolation and explosion proof

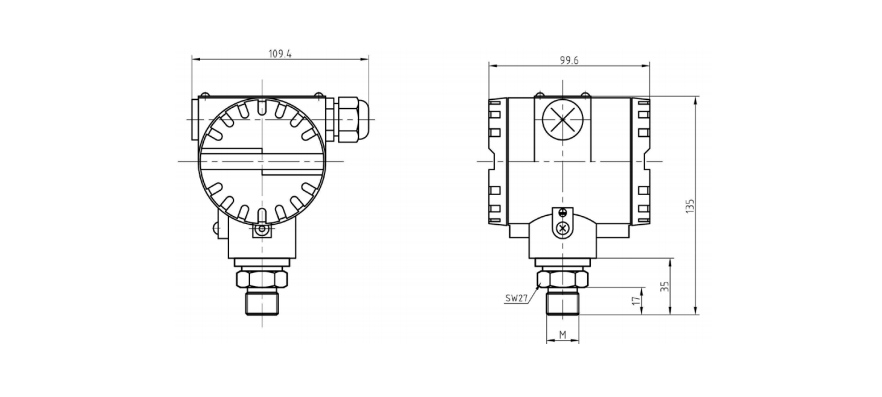

外形结构尺寸（单位：mm）
■The dimensions of the external structure (unit: mm)

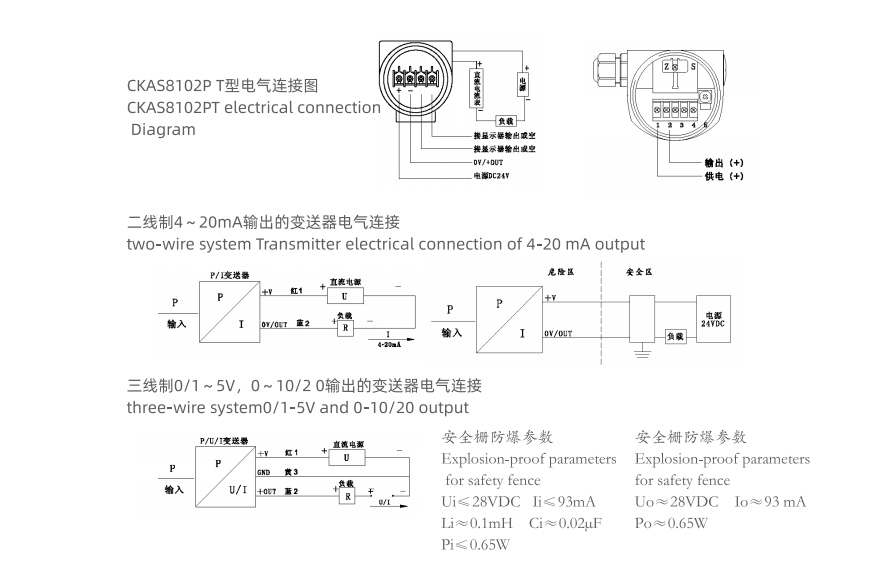

电气连接
Electrical connection
