概述
Overview
CKAS-FLYW990系列液体涡轮流量计是由涡轮流量传感器与显示仪表组成的精密流量测量仪表,属于速度式的流量仪表，采用国外先进技术生产制造，是液体流量测量理想的流量计之一。
CKAS-FLYW990 series liquid turbine flowmeter is a precision flow measuring instrument composed of turbine flow sensor and display instrument. It is a velocity flowmeter manufactured with foreign advanced technology and is one of the ideal flowmeters for liquid flow measurement.
液体涡轮流量计广泛应用于石油、化工、冶金、供水、造纸、环保、食品、医药等领域，适用于无杂质、无强烈腐蚀性、低粘度的液体流量测量，可与智能流量积算仪或定量控制仪配套使用，实现超量程报警或自动定量控制等功能。
Liquid turbine flowmeter is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking, environmental protection, food, medicine and other fields. It is suitable for liquid flow measurement without impurities, strong corrosiveness and low viscosity. It can be used together with intelligent flow totalizer or quantitative controller to realize over-range alarm or automatic quantitative control and other functions.
产品特点
II. Product Features
2.1 高精确度，一般可达1.5级、1级、0.5级(协议供货)；
2.1 High accuracy, generally up to Grade 1.5, 1 and 0.5 (supplied by agreement);
2.2 重复性好，短期重复性可达0.05%~0.2%，正是由于具有良好的重复性,如经常校准或在线校准可得到极高的精确度，在贸易结算中是优先选用的流量计；
2.2 Good repeatability, with short-term repeatability up to 0.05%~0.2%. Due to its good repeatability, the flowmeter can be highly accurate by regular calibration or online calibration, which is preferred in trade settlement;
2.3 具备仪表系数三点修正,智能补偿仪表系数非线性，并可进行现场修正；
2.3 Three-point correction of instrument coefficient, intelligent compensation of instrument coefficient non-linearity, and site correction;
2.4 所有有效数据掉电后保持10年不丢失；
2.4 All valid data will be kept for 10 years after power failure;
2.5 量程比，中大口径可达1:15，小口径为1:10；
2.5 Range ratio, up to 1:15 for medium and large diameter and 1:10 for small diameter;
2.6 结构紧凑轻巧，安装维护方便，流通能力大；
2.6 Compact and light structure, convenient installation and maintenance, and large flow capacity;
2.7 低流量测量下限；
2.7 Lower limit of low flow measurement;
2.8 宽流量测量量程；
2.8 Wide flow measurement range;
2.9 低功耗，高稳定性性能；
2.9 Low power consumption and high stability;
2.10 供电电源：24VDC，≤18W；
2.10 Power supply: 24VDC, ≤18W;
2.11 输出功率：< 0.5W。
2.11 Output power: < 0.5W.
技术参数
Technical Parameters
CKAS-FLYW990液体涡轮流量计结构图
Structure diagram of CKAS-FLYW990 liquid turbine flowmeter
工作原理
V. Working Principle
当被测流体流经传感器时，由于叶轮的叶片与流向有一定的角度，流体的冲力使叶片具有转动力矩，克服摩擦力矩和流体阻力之后叶片旋转，在力矩平衡后转速稳定，在一定的条件下，转速与流速成正比，由于叶片有导磁性，它处于信号检测器(由永久磁钢和线圈组成)的磁场中，旋转的叶片切割磁力线，周期性的改变着线圈的磁通量，从而使线圈两端感应出电脉冲信号，此信号经过放大器的放大整形，形成有一定幅度的连续的矩形脉冲波，可远传至显示仪表，显示出流体的瞬时流量或累积流量。
When the measured fluid flows through the sensor, since the blade of the impeller has a certain angle with the flow direction, the impulse of the fluid makes the blade have a rotating torque, and the blade rotates after overcoming the friction torque and fluid resistance. After the torque is balanced, the speed is stable. Under certain conditions, the speed is proportional to the flow velocity. Due to the magnetic conductivity of the blade, it is in the magnetic field of the signal detector (consisting of permanent magnetic steel and coils). The rotating blade cuts the magnetic line of force, periodically changing the magnetic flux of the coil, so that electrical pulse signals are induced at both ends of the coil. This signal is amplified and shaped by the amplifier to form a continuous rectangular pulse wave with a certain amplitude, which can be transmitted to the display instrument remotely to display the instantaneous flow or cumulative flow of the fluid.
在一定的流量范围内，脉冲频率f与流经传感器的流体的瞬时流量Q成正比，流量方程为：
Within a certain flow range, the pulse frequency f is proportional to the instantaneous flow Q of the fluid flowing through the sensor, and the flow equation is:
每台传感器的仪表系数由制造厂填写在检定证书中，k值设入配套的显示仪表中，便可显示出瞬时流量和累积总量。
The instrument coefficient of each sensor is filled in the verification certificate by the manufacturer, and the k value is set in the supporting display instrument to display the instantaneous flow and cumulative total amount.

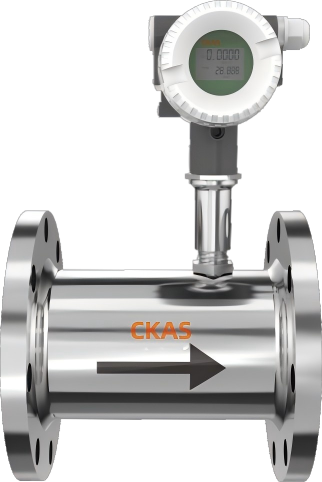

DN4~DN300法兰连接型涡轮流量计尺寸图
DN4-DN300 flanged turbine flowmeter dimensions
DN4~DN100卡箍连接型涡轮流量计尺寸图
DN4-DN100 clamp connection type turbine flowmeter size diagram

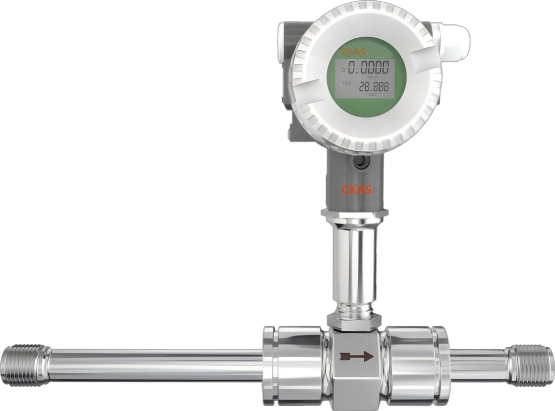

DN4~DN10螺纹连接型涡轮流量计表体(含直管段部分)尺寸图
DN4 ~ DN10 threaded connection turbine flowmeter surface (including straight section part) size diagram
DN15~DN100螺纹连接型涡轮流量计(不含直管段部分)尺寸图
DN15-DN100 threaded connection turbine flowmeter (without straight pipe section) dimensions

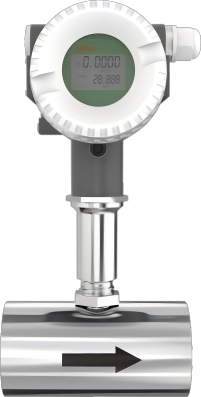

DN15~DN100夹装连接型涡轮流量计尺寸图
DN15 ~ DN100 clamping connection type turbine flowmeter size diagram
尺寸表(单位: mm)
Size Table (in mm)
CKAS-FLYW990液体涡轮流量计材质
CKAS-FLYW990 liquid turbine flowmeter material
CKAS-FLYW990液体涡轮流量计安装示意图
Installation diagram of CKAS-FLYW990 liquid turbine flowmeter
CKAS-FLYW990液体涡轮流量计流量范围表
CKAS-FLYW990 liquid turbine flowmeter flow range table
