气体、液体、油等与接触部分介质相兼容和有一定粘度的易堵流体
-0.1...0~0.01...100MPa(量程缩放最小为基本量程的1/5)
量程的15倍(最大为110MPa)
+0.05%FS(最小)0.075%FS(典型)0.1%FS(最大)
+0.25%FS/年
12~36VDC(标定电压24VDC)
-40~80°C，防爆型-10~60°C
4~20mADC，RS485数字接口/HART协议可选)
壳体：不锈钢：IGrl8Ni9Ti
IP65
产品描述

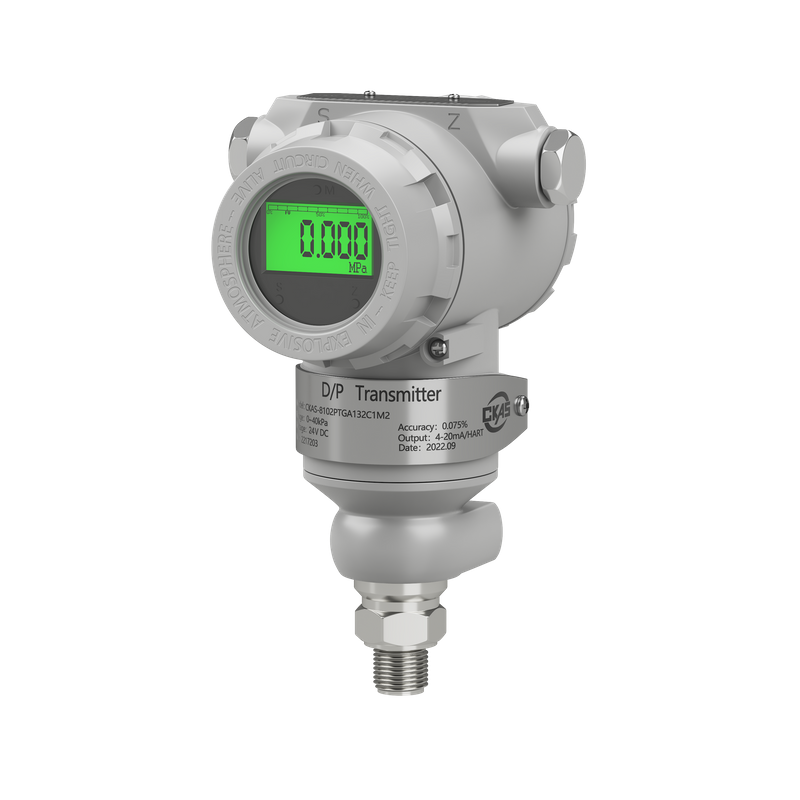

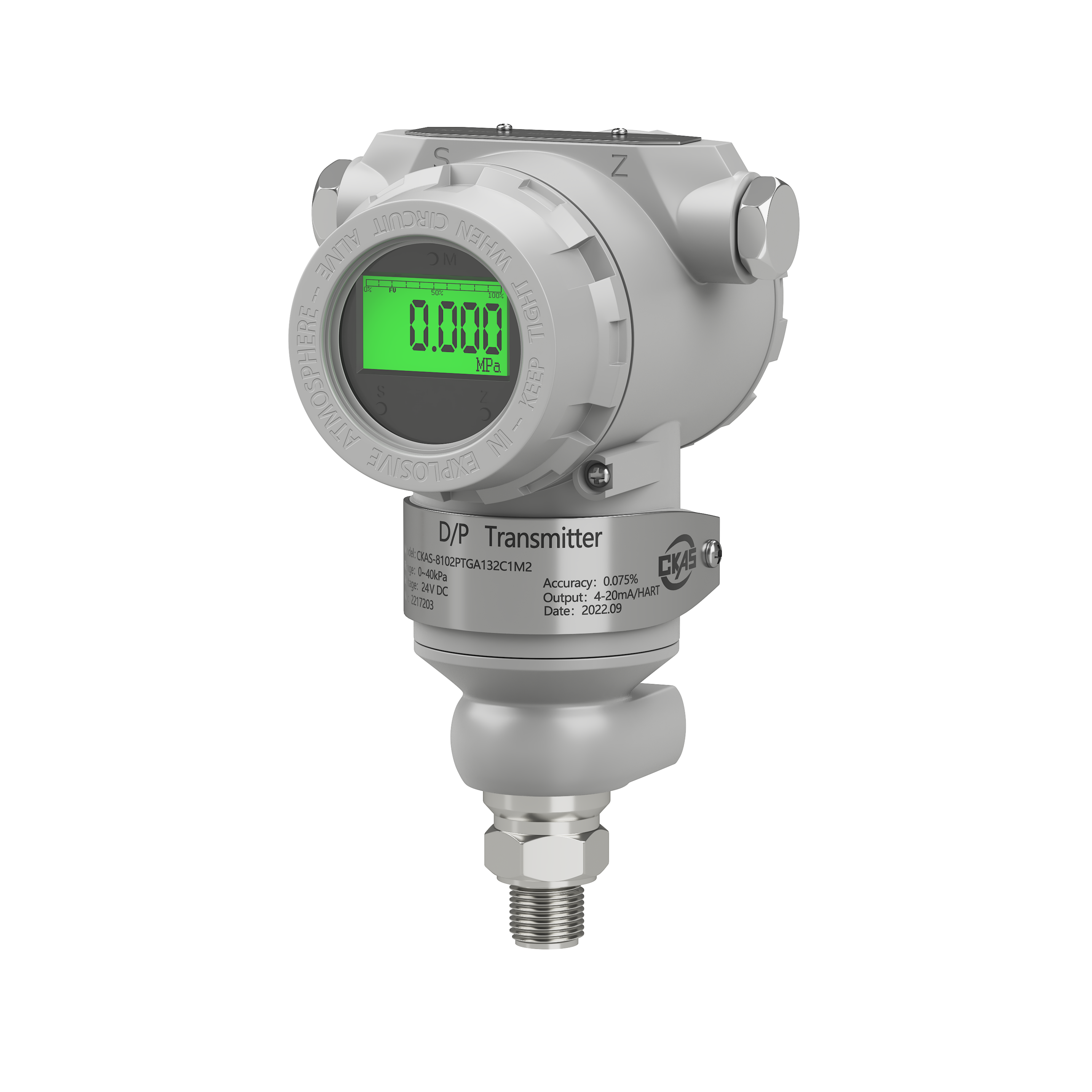

CKAS-8102Z型RS485/HART智能压力变送器是一款高精度、高稳定性的智能化压力测量仪表测量元件采用高性能传感器，结合单片计算机技术和数字转换技术进行精密数字化温度补偿和非线性修正，一体化的结构设计和标准化4~20mA或现场总线RS485信号输出，可满足日益提高的工业现场精密压力测控的需要。
CKAS-8102Z RS485/Hart intelligent pressure transmitter is an intelligent pressure measuring instrument with high precision and high stability. The measuring element adopts high-performance sensors, combines the single-chip computer technology and digital conversion technology to carry out precise digital temperature compensation and nonlinear correction, the integrated structure design and standardized 4 ~ 20mA or RS485 signal output can meet the needs of increasing precision pressure measurement and control in industrial field
产品可采用二线制工作方式，具备零点自动调整和温度自动补偿功能，抗干扰能力强，是模拟二线制4~20mAD C变送器的升级产品RS485型通过提供的上位机软件可实现变送器零点、满程的无源调校、量程缩放和参数设置.数字量接口可灵活组网(最多挂接99个)应用。HART协议型可通过手操器或组态系统对变送器进行现场组态.操作维护简单方便。
Products can be used in two-line system, with zero automatic adjustment and automatic temperature compensation function, strong anti-interference ability, rS485 is an upgrade product of analog 2-wire 4-20mAD C transmitter. It can realize zero-point, full range passive adjustment, range scaling and parameter setting by providing PC software. Digital quantity interface can be flexibly networking (up to 99 hook-up) applications. Hart protocol can be used to configure the transmitter on the spot by manual operator or configuration system. Easy operation and maintenance.
外形结构尺寸
Dimensions of shape and structure
电气连接
Electrical connection
辅助软件
Assistive software
RS485接口型变送器，我公司提供专用RS485程控软件。可通过RS485/232转换模块对RS485接口型变送器读取产品内部基本信息(液位量程、温度补偿范围等)，显示实际液位值，设置新零点，程控设置模拟输出、仪表地址等操作。
RS485 interface transmitter, our company provides special RS485 program control software. RS485/232 conversion module can be used to read the basic product information (level range, temperature compensation range, etc.) , display the actual level value, set the new zero point, program control set analog output, instrument address and other operations.
HART协议接口型产品，我公司提供专用HART程控软件，可通过HART375/475手操器对变送器进行软件调试和校准。
Hart Protocol Interface Products, our company provides special HART program control software, can be HART375/475 manual operator on the transmitter software debugging and calibration.
辅助软件驱动程序可在我公司网站下载或联系客服中心索取，直接使用。特殊需求的应用软件用户可根据需要自行开发或通过我公司客服联系合作开发。
Auxiliary software drivers can be downloaded from our website or contact the customer service center for direct use. Special requirements of the application software users can be developed according to their own needs or through our customer service contact cooperation development.
应用举例
Application examples
产品描述
CKAS-8102Z型RS485/HART智能压力变送器是一款高精度、高稳定性的智能化压力测量仪表测量元件采用高性能传感器，结合单片计算机技术和数字转换技术进行精密数字化温度补偿和非线性修正，一体化的结构设计和标准化4~20mA或现场总线RS485信号输出，可满足日益提高的工业现场精密压力测控的需要。
CKAS-8102Z RS485/Hart intelligent pressure transmitter is an intelligent pressure measuring instrument with high precision and high stability. The measuring element adopts high-performance sensors, combines the single-chip computer technology and digital conversion technology to carry out precise digital temperature compensation and nonlinear correction, the integrated structure design and standardized 4 ~ 20mA or RS485 signal output can meet the needs of increasing precision pressure measurement and control in industrial field
产品可采用二线制工作方式，具备零点自动调整和温度自动补偿功能，抗干扰能力强，是模拟二线制4~20mAD C变送器的升级产品RS485型通过提供的上位机软件可实现变送器零点、满程的无源调校、量程缩放和参数设置.数字量接口可灵活组网(最多挂接99个)应用。HART协议型可通过手操器或组态系统对变送器进行现场组态.操作维护简单方便。
Products can be used in two-line system, with zero automatic adjustment and automatic temperature compensation function, strong anti-interference ability, rS485 is an upgrade product of analog 2-wire 4-20mAD C transmitter. It can realize zero-point, full range passive adjustment, range scaling and parameter setting by providing PC software. Digital quantity interface can be flexibly networking (up to 99 hook-up) applications. Hart protocol can be used to configure the transmitter on the spot by manual operator or configuration system. Easy operation and maintenance.
外形结构尺寸
Dimensions of shape and structure
电气连接
Electrical connection
辅助软件
Assistive software
RS485接口型变送器，我公司提供专用RS485程控软件。可通过RS485/232转换模块对RS485接口型变送器读取产品内部基本信息(液位量程、温度补偿范围等)，显示实际液位值，设置新零点，程控设置模拟输出、仪表地址等操作。
RS485 interface transmitter, our company provides special RS485 program control software. RS485/232 conversion module can be used to read the basic product information (level range, temperature compensation range, etc.) , display the actual level value, set the new zero point, program control set analog output, instrument address and other operations.
HART协议接口型产品，我公司提供专用HART程控软件，可通过HART375/475手操器对变送器进行软件调试和校准。
Hart Protocol Interface Products, our company provides special HART program control software, can be HART375/475 manual operator on the transmitter software debugging and calibration.
辅助软件驱动程序可在我公司网站下载或联系客服中心索取，直接使用。特殊需求的应用软件用户可根据需要自行开发或通过我公司客服联系合作开发。
Auxiliary software drivers can be downloaded from our website or contact the customer service center for direct use. Special requirements of the application software users can be developed according to their own needs or through our customer service contact cooperation development.
应用举例
Application examples
