概述
Overview

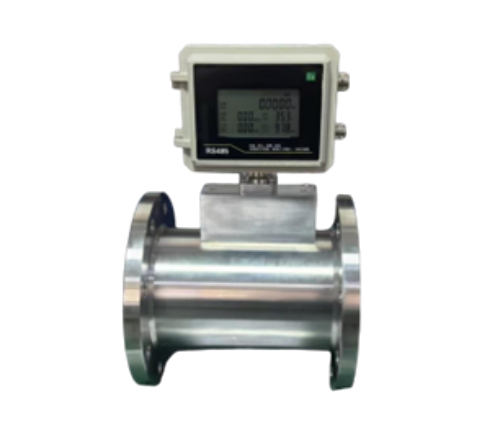

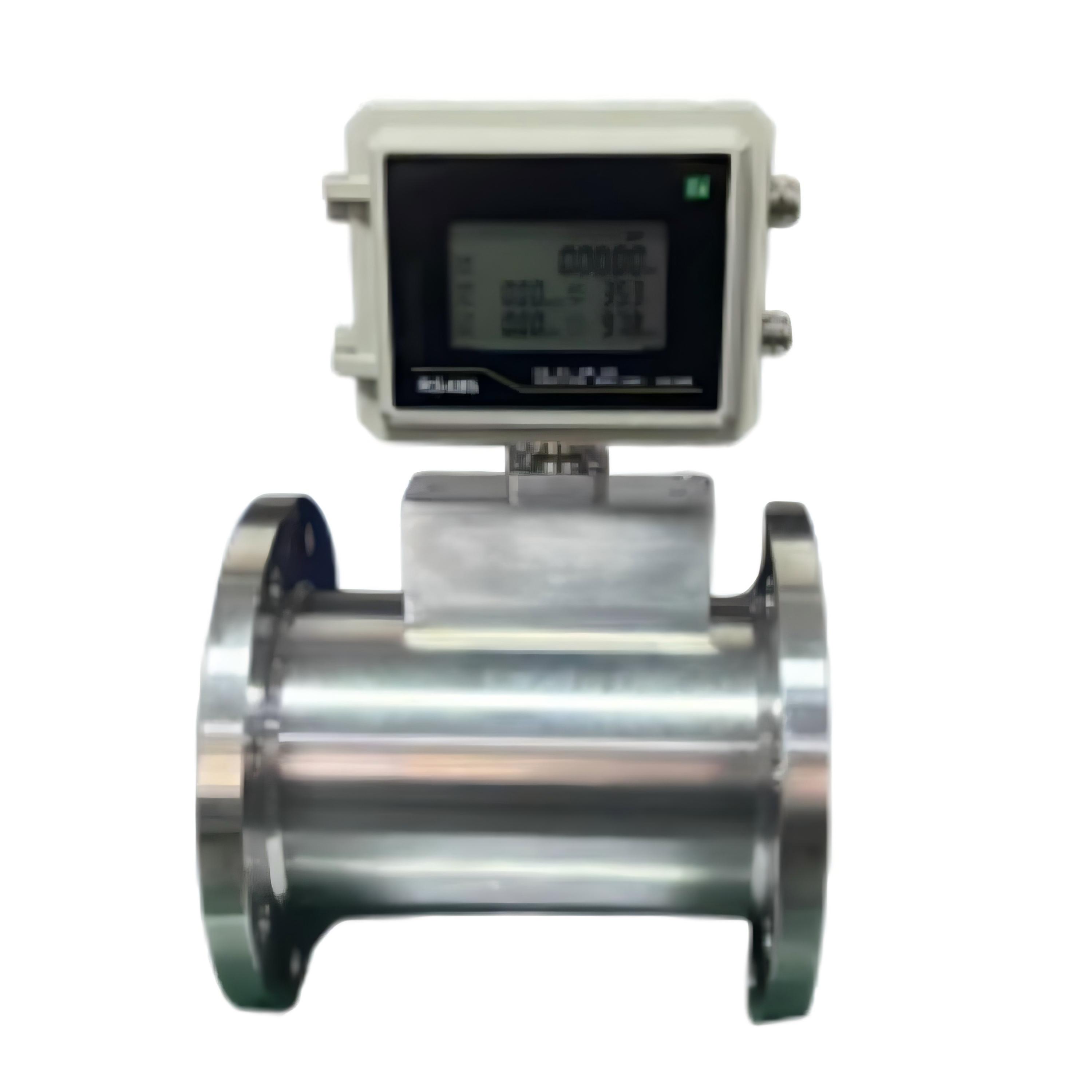

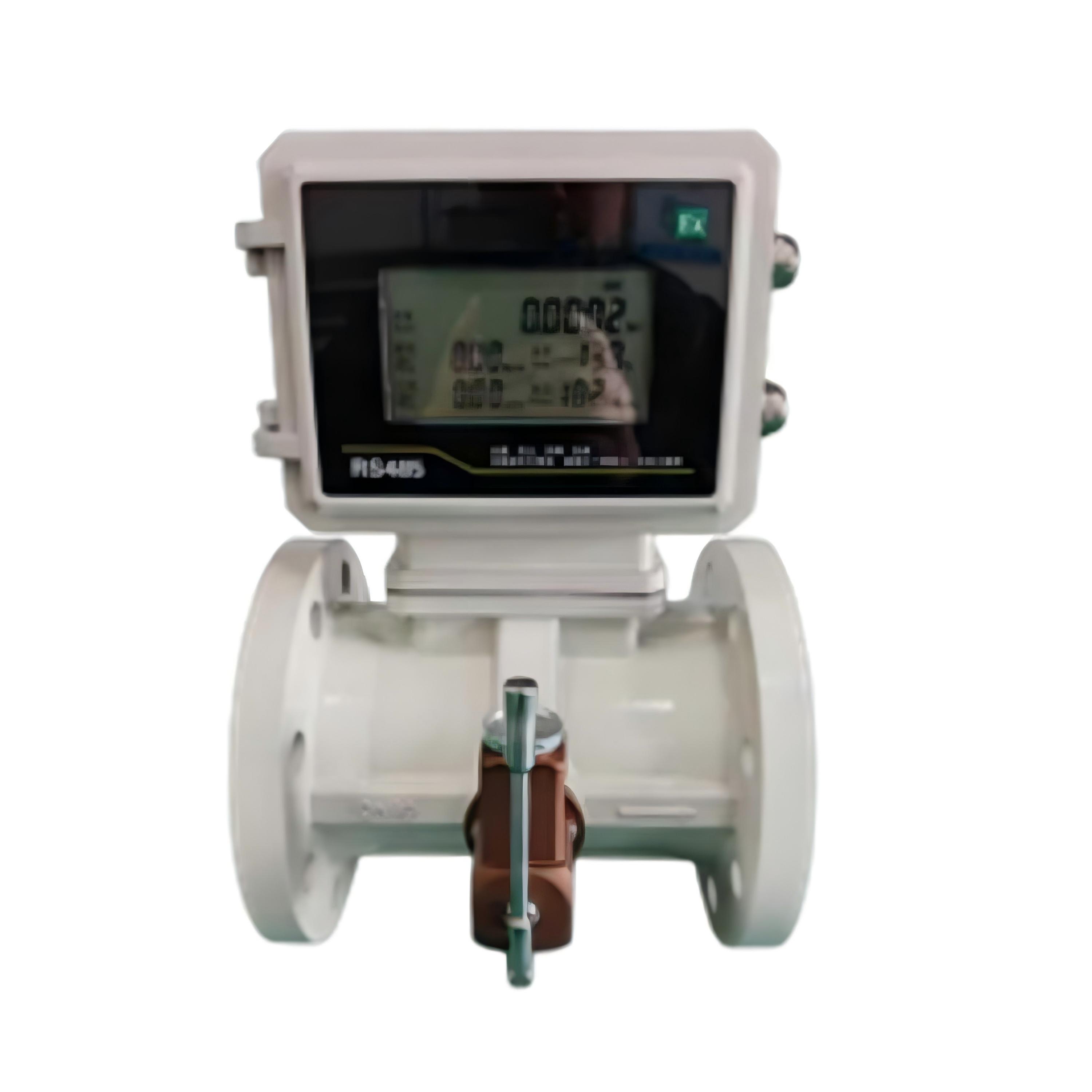

CKAS-FLQW990气体涡轮流量计采用先进的超低功耗单片微机技术，智能化电路设计，集流量探头、微处理器、压力、温度传感器于一体，采取内置式蛆合，使结构更加紧凑，可直接测量流体的流量、压力和温度，并自动实时跟踪补偿和压缩因子修正，采用液晶点阵汉字显示，显示位数多，读数直观方便，可直接显示工作状态下的体积流量、标准状态下的体积流量、总星，以及介质压力温度等参数，可输出频率脉冲、(4~20)mA模拟信号并具有RS485接口。
CKAS-FLQW990 gas turbine flowmeter, featuring advanced ultra-low power consumption single-chip microcomputer technology and intelligent circuit design, integrates the flow probe, microprocessor, pressure, and temperature sensors. The built-in combination enables the flowmeter to be more compact in structure and to perform direct measurement of the flow, pressure, and temperature of fluid, and automatic real-time tracking compensation and compressibility factor correction. The lattice LCD with Chinese character display featuring many display digits and intuitive and convenient reading can directly display parameters such as the volume flow in working conditions, the volume flow and total flow in standard conditions, medium pressure and temperature; it can output frequency pulses, (4~20) mA analog signals and is equipped with RS485 interface.
中英文双语言选择，广泛应用于石油、化工、电力、冶金等行业的气体计量。
With Chinese and English versions available, it is widely applied to gas metering in petroleum, chemical, electric power, metallurgy, and other industries.
技术参数
Technical parameters
产品特点
Product Features
1.采用液晶点阵汉字显示，显示位数多，读数直观方便可直接显示工作状态下的体积流量、标准状态下的体积流量、总量，以及介质压力、温度等参数；
1.The lattice LCD with Chinese character display featuring many display digits and intuitive and convenient reading can directly display parameters such as the volume flow in working conditions, the volume flow and total flow in standard conditions, medium pressure and temperature;
2.有中英文两种语言供客户选择；
2.Both Chinese and English are available for customers to choose from;
3.无机械可动部件，不易腐蚀，稳定可靠，寿命长，长期 运行无须特殊维护；
3.No mechanical movable parts enable good corrosion resistance, stability and reliability, long service life, and long-term operation without special maintenance;
4.采用16位电脑芯片，集成度高，体积小，性能好，整机功能强；
4.The highly integrated 16-bit computer chip, with small volume and excellent performance, enables powerful machine functions;
5.智能型流量计集流量探头、微处理器、压力、温度传感器于一体，采取内置式组合，使结构更加紧凑，可直接测 量流体的流量、压力和温度，并自动实时跟踪补偿和压缩因子修正；
5.The intelligent flowmeter featuring the built-in combination structure that integrates the flow probe, microprocessor, pressure and temperature sensors makes it more compact; it can perform direct measurement of the flow, pressure, and temperature of fluid, and automatic real-time tracking compensation and compressibility factor correction;
6.采用双检测技术可有效地提高检测信号强度，并抑制由管线振动引起的干扰；
6.The dual detection technology can effectively improve the detection signal strength and suppress the interference caused by pipeline vibration;
7.采用国内领先的智能抗震技术，有效的抑制了震动和压力波动造成的干扰信号；
7.The application of domestic leading intelligent seismic technology effectively suppresses the interference signals caused by vibration and pressure fluctuation;
8.采用EEPROM技术,参数设置方便,可永久保存；
8.EEPROM technology ensures that the parameters are convenient to set and can be stored permanently;
9.转换器可输出频率脉冲、(4~20)mA模拟信号，并具有RS485接口，可直接与微机联网，传输距离可达1.2km；
9.The converter can output frequency pulses and (4~20) mA analog signals; equipped with RS485 interface, it can be directly networked with microcomputers, with a transmission distance of up to 1.2km;
10.多种报警输出方式，可由用户任选其中之一；
10.Multiple alarm output modes, one of which can be selected by the user;
11.流量计表头可双向360度旋转，安装使用简单方便；
11.The flowmeter with its head rotating 360° in both directions is simple and convenient to install and use.
12.整机功耗低，采用双供电模式，可用内电池供电也可外接电源；一节干电池全性能工作可维持至少2年。
12.With the low power consumption design, the complete machine is configured with dual power supply modes; it can be powered by the built-in battery or connected to an external power supply; a dry battery can maintain the power supply for at least 2 years with full performance.
流量计选型实例
Example of flowmeter selection
已知某一供气管线的实际工作压力为(表压)0.8MPa~1.2MPa,介质温度范围为-5C~+40C,供气量为3000~8000Nm2/h(标况流量)在不考虑天然气组分的情况下，要求确定流量计的规格型号。
It is known that the actual working pressure of a gas supply pipeline is (surface pressure)0.8 mpa ~ 1.2 mpa, the medium temperature range is -5 c ~ + 40 c, and the gas supply capacity is 3000.8000 NM2/h (standard flow rate) , requirements to determine the size and type of flowmeter.
分析:说明书表6.1中给出的流量范围为工况流量范围，而本例中给出的流量范围是标况流量范
围，因此，必须根据气态方程先将标况流量换算成工况流量，然后再选择合适的口径。
气态方程式如下:
Analysis: the flow range given in table 6.1 of the specification is the flow range under operating conditions, whereas the flow range given in this example is the flow range under standard conditions. Therefore, the standard flow rate must be converted into the flow rate under operating conditions according to the gas state equation, then choose the right caliber. The gas equation is as follows:
表6.2中的数据仅供参考，其数据按天然气的真实相对密度Gr=0.600,氮气和二氧化碳摩尔分数均为0.00计算所得，当介质压力低于0.5MPa时，均可按Zn/Zg=1.00估算。
The data in table 6.2 are for reference only. They are calculated according to the true relative density GR = 0.600 for natural gas, and the mole fraction of nitrogen and carbon dioxide are both 0.00. When the medium pressure is below 0.5 mpa, can be estimated by Zn/ZG = 1.00.
计算:
Calculations:
0当介质压力最低(0.8MPa)、温度最高(+40°C)时(处于供气峰期)，应具有最大标况体积流量(选型时可暂不考虑FZ的影响，当地大气压取101.325kPa):
0 when the medium pressure is the lowest (0.8 MPA) and the temperature is the highest (+ 40 ° C)(in the peak period of gas supply) , it should have the maximum standard volume flow rate (the influence of FZ can not be considered when selecting the model, the local atmospheric pressure is 101.325 kpa) :
表6.1按气态方程计算的换算系数C值
Table 6.1 conversion factor C calculated by gas equation
表6.2气体压缩因子Fz值
Table 6.2 gas compression factor FZ values
配套产品: LQW系列气体过滤器
Supporting products: LQW series gas filters
LQW系列气体过滤器是我公司生产的专为气体涡轮流量计配套的产品，符合流量计安装要求。
LQW series gas filter is our company's production of gas turbine flowmeter supporting products, in line with the flowmeter installation requirements.
据统计，安装LOW系列气体过滤器可有效避免流量计因杂质冲击造成的损坏，减少90%以上的仪表故障率，是气体计量现场必不可少的设备之一。
According to statistics, installing LOW series gas filter can effectively avoid the damage of flowmeter caused by impingement, reduce more than 90% of the instrument failure rate, is one of the indispensable equipment in gas measurement field.
LQW系列气体过滤器也适用于各种调压装置，是滤除气体中的粉尘及杂质等脏物，确保各类气体设备正常运行的重要设备。
LQW series gas filter is also suitable for all kinds of pressure regulating devices, is the filter of dust and impurities in the gas and other dirty, to ensure the normal operation of all kinds of gas equipment important equipment.
产品特点
Product characteristics
过滤面积大、压损小、耐腐蚀性强；
Large filter area, small pressure loss, strong corrosion resistance;
过滤器效果好，导通能力强;
The filter has good effect and strong conducting ability
过滤芯片可多次清洗，使用寿命强;
The filter chip can be cleaned many times and has strong service life
结构紧凑，维护简单;
Compact structure, simple maintenance;
可活动式法兰，安装方便;
Movable flange, easy to install;
自带排污阀。
Self-sewage valve.
技术参数
Technical parameters
产品尺寸 单位(mm)
Product size, unit (mm)
