概述
Overview

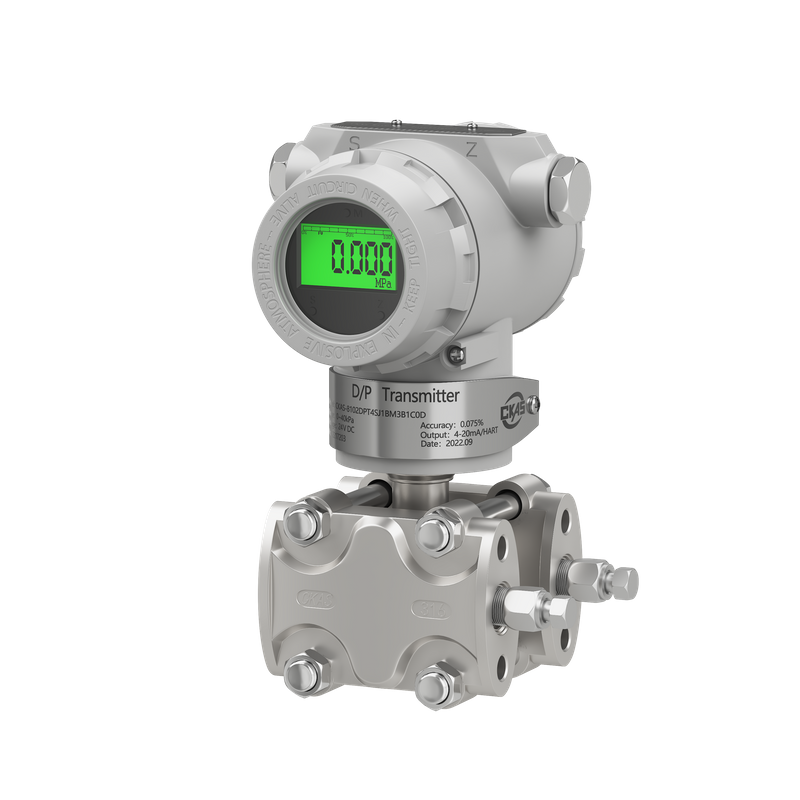

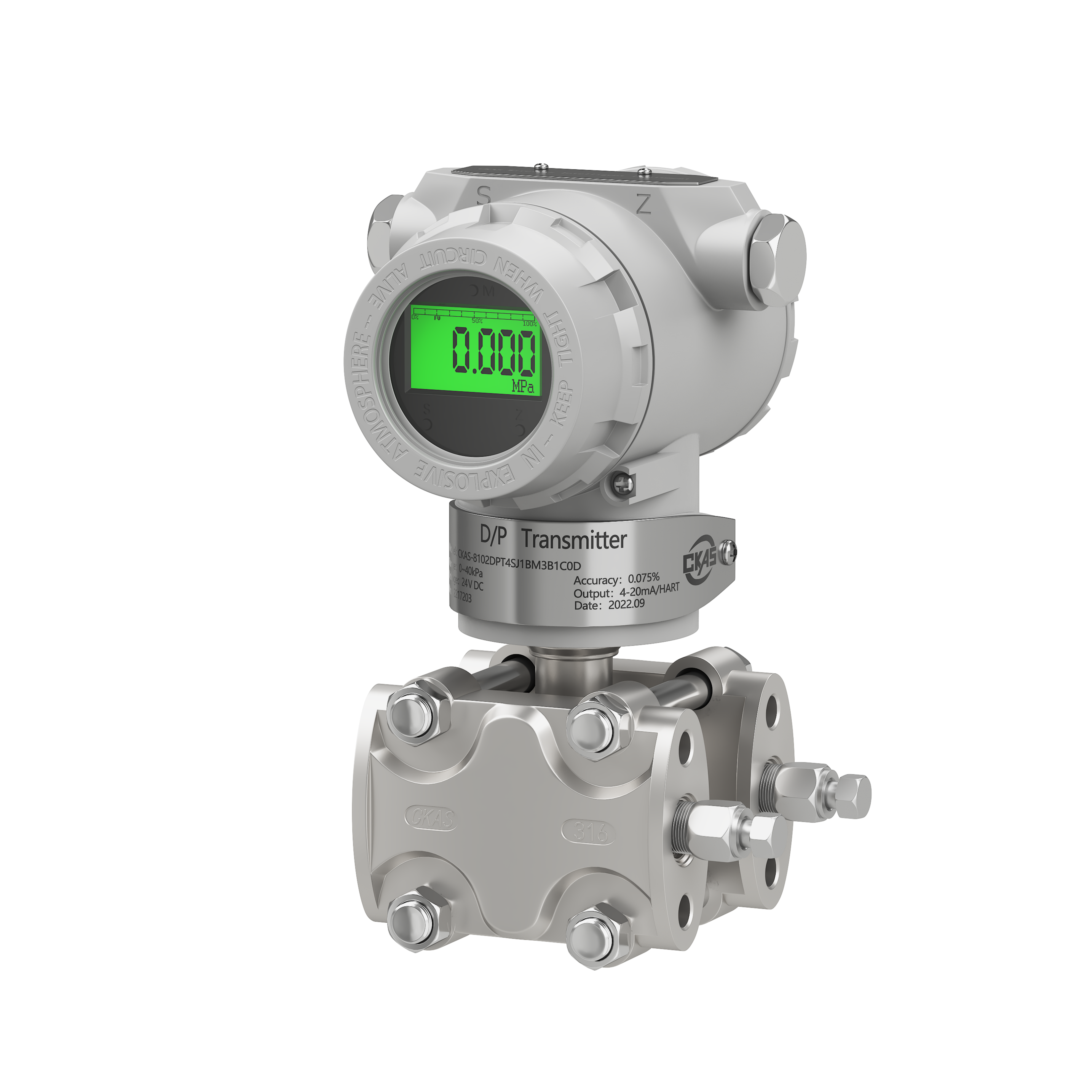

CKAS-8102T型压力/绝压变送器是本公司在CKAS-810 2结构基础上针对压力/绝压测量而推出的一种新款产品，该产品继承了 CKAS-8102的所有特点、简化了结构、使产品具有体积小、重量轻、安装方便的突出优点。
The CKAS-8102T Pressure/Absolute Pressure Transmitter is a new product for pressure/absolute pressure measurement based on CKAS-8102 structure, which inherits all the characteristics of CKAS-8102, simplifies the structure, and enables the product to be small in size, light in weight and easy to install.
CKAS-8102T型采用进口压力传感器膜盒，稳定性好，可靠性高。
CKAS-8102T adopts an imported pressure sensor membrane box, which is stable and reliable.
CKAS-8102T型电子电路采用模拟和智能圆卡电路，具有模拟4~20mA和数字通讯（HART协议）两种输出方式，智能型CKAS-8102T具有温度、压力自补偿、自组态、自校准、自诊断等功能，并且各种出厂参数均有备份，在任何情况下，均不会丢失。
The CKAS-8102T adopts an analog and intelligent round card circuit, with two output modes of 4 ~ 20 mA and digital communication (HART Protocol). The intelligent CKAS-8102T has functions such as temperature, pressure self-compensation, self-Configuration, self-Calibration, self-diagnosis, and other functions, and various factory parameters are backed up, which will not be lost in any case.
智能CKAS-8102T型采用HART协议进行通信，可与任何使用HART协议的上位机或手手持通讯器进行通信。
The intelligent CKAS-8102T model adopts the HART protocol for communication, which can communicate with any superior computer or hand-held communicator using the HART protocol
CKAS-8102T型可带LC D液晶表头，数显单位有kPa、MPa、%、mA、m、mm 等。
The CKAS-8102T with LCD meter head and the digital display units are kPa, MPa, %, mA, m, mm, etc.
产品特点
Product characteristics
性能优异，精度0.15%、0.3%
Excellent performance with 0.15%, and 0.3% accuracy
量程：lkPa~60MPa
Measurement Range: lkPa~ 60MPa
全不锈钢焊接结构
All stainless steel welded structure
灌充液：高温硅油
Pouring liquid: High-temperature Silicon oil
过程连接：M20X1.5 1/2 NPT"或法兰
Process connection: .M20X1.5 1/2 NPT" or Flange
技术性能指标
Technical performance indicators
精度：±0.05%、±0.075%
Accuracy: ± 0.05%, ± 0.075%
稳定性：±0.5%/年
Stability: ± 0.5%/year
动态响应：100ms
Dynamic Response:100 ms
温度影响：2×107°F.S
Temperature effect:2×107 °F.S
位置误差：忽略
Position error: ignore
电源影响：0.05%/F.S
Power supply effect:0.05%/F.S
测量范围：
Measurement range:
表压：±1kPa~±100kPa 0~60MPa 绝压：0~20kPa~35MPa
Gauge pressure: ± 1 kPa~± 100 kPa 0 ~ 60MPa absolute pressure :0 ~ 20 kPa~ 35MPa
输出：4~20mA 4~20mA+HART
Output:4 ~ 20mA 4 ~ 20mA+HART
供电：12.5~36VDC 标准2 4VDC
Power supply:12.5 ~ 36VDC standard 24VDC
负载特性：见图
Load characteristics: refer to Fig.
表头显示：LCD数字显示
Header display: LCD digital display
量程调节：10：1
Range adjustment:10:1
抗振动：3g's llms
Vibration resistance:3g's llms
抗冲击：50g's llms
Shock resistance: 50g's llms
限流：<26mA
Current restriction: < 26 mA
工作温度：-25~80℃加冷凝管-30~150℃
Operating temperature:-25 ~ 80℃ for condensation pipe-30 ~ 150℃
环境温度：-30~90℃
Ambient temperature:-30 ~ 90℃
过载：2倍
Overload:2 times
防爆：Exia II CT4-CT6
Explosion-proof: Exia II CT4-CT6
电子外壳：铝合金
Electronic housing: aluminum alloy
重量：1.5kg
Weight:1.5 kg
选型指南
■Selection Guide
CKAS-8102T | 压力/绝压变送器 Pressure/Absolute Pressure Transmitter | |||||||||||||||||
Code | 测量方式 Measurement method | |||||||||||||||||
G | 表压 Gauge pressure | |||||||||||||||||
A | 绝压 Absolute pressure | |||||||||||||||||
Code | 输入方式 Input Method | |||||||||||||||||
N | 模拟型（4～20mA输出） Analog (4 ~ 20 mA output) | |||||||||||||||||
S | 智能型（4～20mA+HART总线协议输出） Intelligent (4 ~ 20mA+HART bus protocol output) | |||||||||||||||||
代号Code | 测量范围 Measurement range of the gauge pressure (including negative pressure) | Code | 绝压 测量范围 Measurement range of the absolute pressure | |||||||||||||||
01 | 0-1 ~ 60KPa | 01 | 0-10 ~ 40KPa | |||||||||||||||
02 | 0-1 ~ 40KPa | 02 | 0-40 ~ 250KPa | |||||||||||||||
03 | 0-40 ~ 250KPa | 03 | 0-0.16～1MPa | |||||||||||||||
04 | 0-0.16～1MPa | 04 | 0-0.4～2.5MPa | |||||||||||||||
05 | 0-4～25MPa | 05 | 0-1.6～10MPa | |||||||||||||||
06 | 0-7～35MPa | 06 | 0-7～35MPa | |||||||||||||||
07 | 0-12～60MPa | |||||||||||||||||
Code | 接口方式 Interface mode | |||||||||||||||||
M1 | M20×1.5外螺纹 M20×1.5 external thread | |||||||||||||||||
M2 | 1/2〃NPT外螺纹 1/2〃NPT external thread | |||||||||||||||||
M3 | G1外螺纹 G1 external thread | |||||||||||||||||
M4 | 特殊订制Customization | |||||||||||||||||
Code | 精度 Accuracy | |||||||||||||||||
A | 0.15%FS（模拟） 0.15% FS (simulation) | |||||||||||||||||
B | 0.3%FS（智能） 0.3% FS (intelligent) | |||||||||||||||||
Code | 防爆 Explosion Proof | |||||||||||||||||
N | 普通型 Standard | |||||||||||||||||
I | 本安型 Exia | |||||||||||||||||
d | 隔爆型 Exd | |||||||||||||||||
Code | 选件 Options | |||||||||||||||||
O | 不带表头 Without header | |||||||||||||||||
D | LCD数显表头 LCD digital display header | |||||||||||||||||
CKAS-8102TASG03MlBND 选型举例 Example of model selection | ||||||||||||||||||
