CKAS-8102DPT/GPT型远传差压/压力变送器

概述

Overview

CKAS-8102HDPT型高静压变送器可在工作压力32MPa下测量差压，由于具有32MPa的耐压和过载保护，确保了变送器能在高静压系统中得到可靠的应用。

The CKAS-8102HDPT high static pressure transmitter is capable of measuring the differential pressure at an operating pressure of 32MPa, which ensures a reliable application in the high static pressure system due to the 32MPa pressure and overload protection.

使用对象：液体、气体和蒸汽。

Using Objects: Liquid, gas, and steam.

接和变送器的隔离膜片接触的可靠测量方法，适用于以下几种情况:

A reliable method of measuring the contact of the diaphragm to and from the transmitter is suitable for the following situations:

1.被测介质对变送器接头和敏感元件有腐蚀作用时

1. When the measured medium corrodes the transmitter joint and the sensitive element

2.需要将高温被测介质与变送器隔离时;

2、When the high-temperature measured medium needs to be isolated from the transmitter;

3.被测介质中有固体悬浮物或高粘度易堵塞变送器接头和压力容室时;

3. When the measured medium has solid suspension or high viscosity, the transmitter joint and the pressure vessel are easy to be blocked;

4.被测介质用引压管引出易固化或结晶时

4. When the tested medium is easily solidified or crystallized by using a pressure tube

5.更换被测介质需要;中洗而不容交混时:

5. When replacement of the medium under test is required; when medium washing is not compatible with mixing:

6.必须保持卫生条件防止污染时.

6. When sanitary conditions must be maintained to prevent contamination.

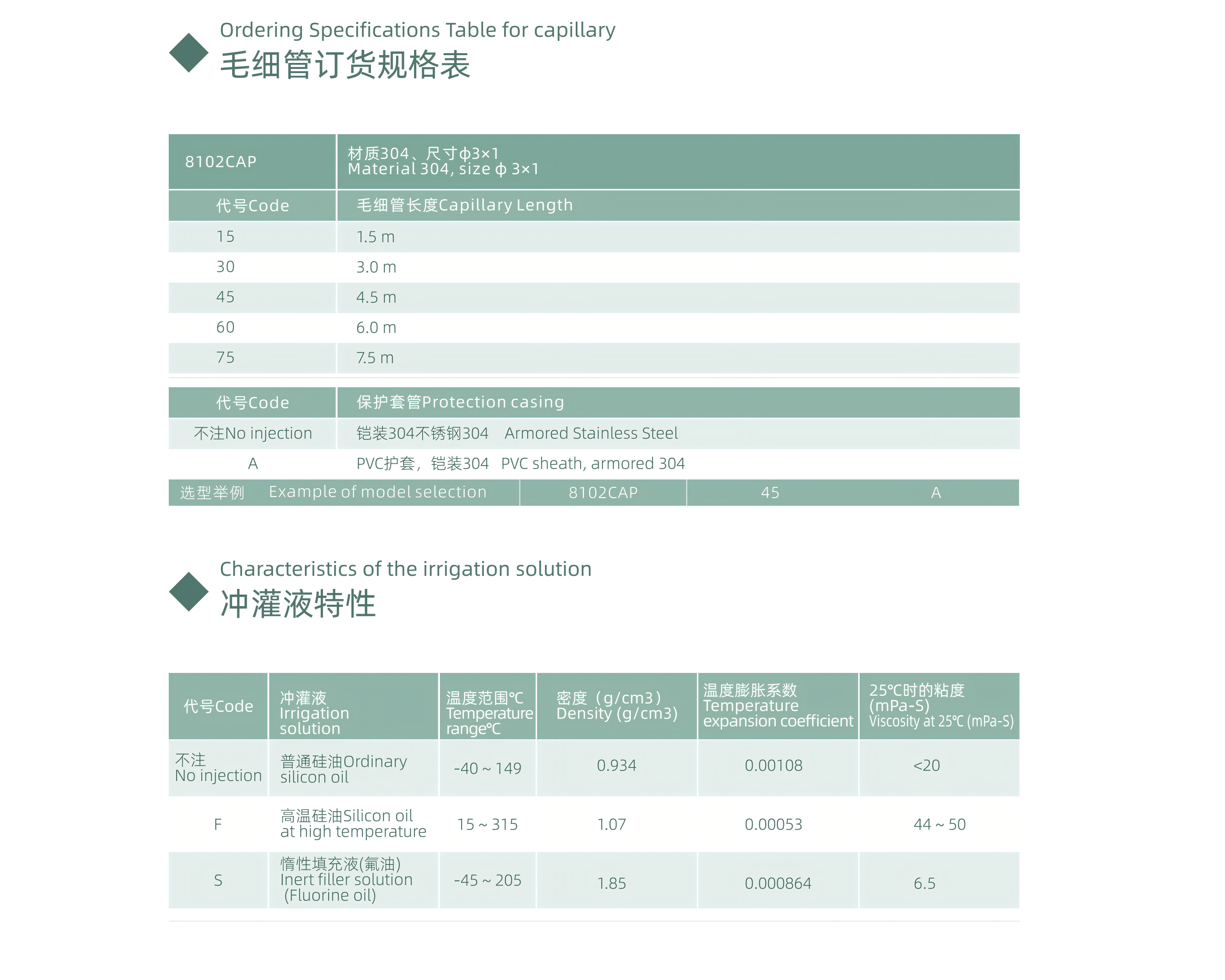

CKAS-8102DP/GP型带远传密封装置的差压/压力变送器，仍具有CKAS-8102DP/GP型差压/压力变送器的性能特点。提供多种结构材料，远传装置组件焊接结构，可靠性强。充液腔低容积设计，减少温度影响，根据用户要求内充DC200系列硅油使用温度-40~ +149°;高温硅油使用温度20~+315°C

CKAS-8102DP/GP differential pressure/pressure transmitter with remote transmission sealing device still has the characteristics of CKAS-8102DP/GP differential pressure/pressure transmitter. Provide a variety of structural materials, remote transmission device components welding structure, strong reliability. Low volume design of liquid-filled chamber to reduce temperature effect DC 200 series silicone oil charging temperature according to user requirements -40~ +149°;High temperature silicone oil service temperatur20~+315°C

远传装置的工作压力上限是用户选择远传装置的额定值;工作压力不低于3.5kPa(绝对压力)。对腐蚀性介质，隔离膜片材料的选择参见附录，仅作用户选型时参考

The upper limit of the working pressure of the remote transmission device is the rated value of the user's choice of the remote transmission device; the working pressure is not less than 3.5 kpa (absolute pressure) . For corrosive media, please refer to the appendix for the selection of is
